VISATON 1.8″ 4W Full-Range Driver, Aluminium Diaphragm, 4Ω
Compact VISATON 1.8” 4W full-range driver with aluminium diaphragm, ideal for audio, DJ & public address systems. 4Ω impedance, 90Hz–20kHz range.

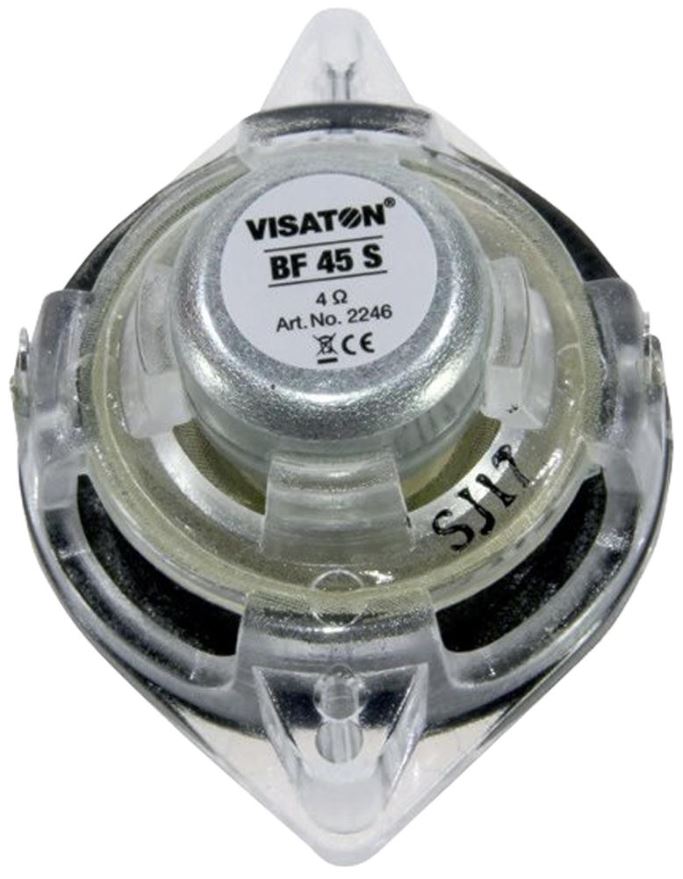

The VISATON 1.8″ 4W Full-Range Driver delivers crisp and balanced audio performance with its black aluminium diaphragm and transparent plastic basket. Ideal for applications requiring slim construction without compromising on sound quality, this compact driver offers excellent frequency response (90Hz–20kHz) and enhanced low-range reproduction. With two mounting holes, it provides easy installation for various audio setups.
Featuring solder lug connections and a front pole-plate height of 3mm, this driver is designed for durability and reliable performance. Its 17mm voice coil diameter and 4mm winding height ensure precise sound reproduction for music, speech, and general audio applications.
Whether for business, education, public announcements, or DJ setups, this VISATON full-range driver is a versatile choice for restricted-space installations. With a nominal impedance of 4Ω and an RMS power handling of 4W (peak 8W), it ensures efficient sound delivery while maintaining clarity across frequencies.
Key Features:
- Material: Black aluminium diaphragm, plastic basket

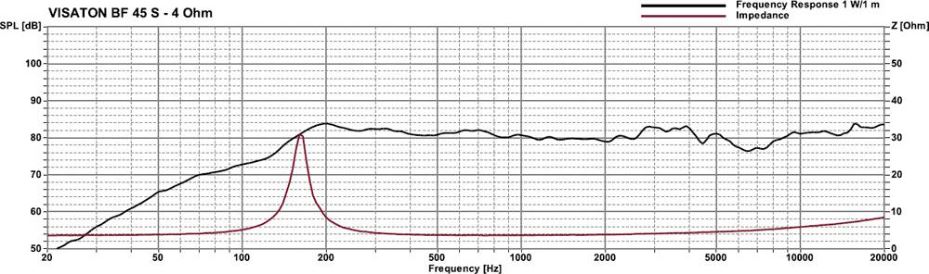

- Frequency Response: 90Hz–20kHz
- Impedance: 4Ω
- Sensitivity: 79dB SPL
- Mounting: 2-hole, bare mount
- Compact Design: Slim profile, 61 × 45 × 26mm
- Applications: Audio systems, public announcements, DJ equipment, educational use
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Home audio systems
- Public address (PA) systems
- Educational audio installations
- DJ and music equipment
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Output Power: 4W RMS (8W max)
- Frequency Response: 90Hz – 20kHz
- Nominal Impedance: 4Ω
- Mean SPL: 79dB
- Resonance Frequency: 160Hz
- Connections: Solder lugs
- Front Pole-Plate Height: 3mm
- Voice Coil Diameter: 17mm
- Voice Coil Winding Height: 4mm
- Cutout Diameter: 45mm

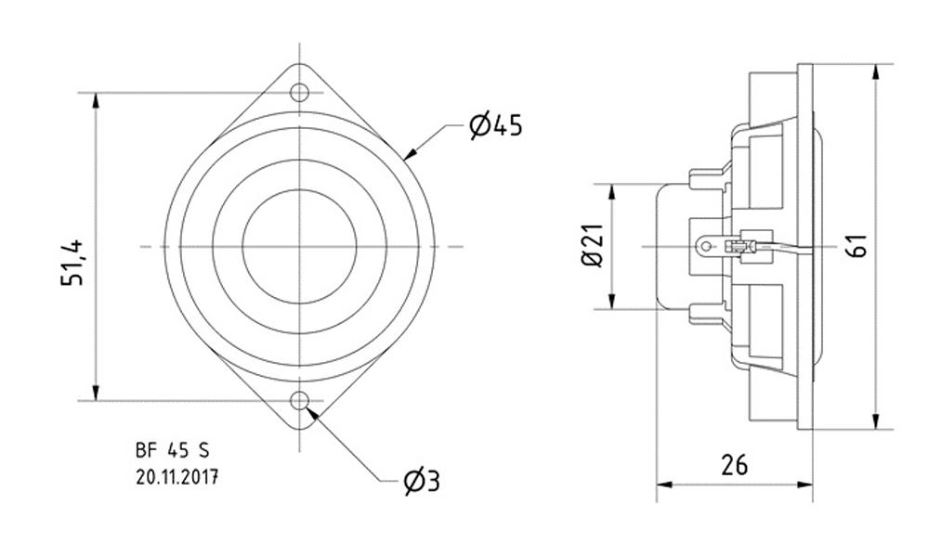

- Dimensions (H×W×D): 61 × 45 × 26mm
- Weight: 32g (approx. 40g packaged)
