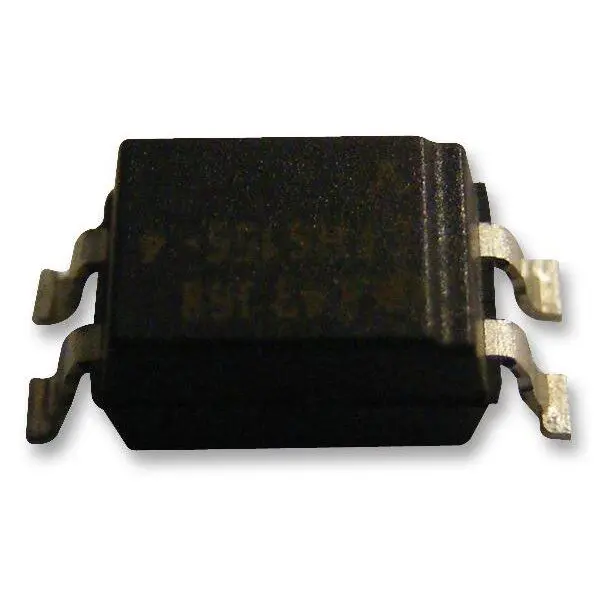

VISHAY 1-Channel Transistor Output Optocoupler, SMD DIP, 4-Pin, 60mA, 5.3kV
VISHAY 1-channel phototransistor optocoupler with 5.3kV isolation, 60mA forward current, and 160% CTR. Ideal for power management and networking.
The VISHAY 1-Channel Transistor Output Optocoupler is engineered for reliable signal transmission between two electrically separated circuits. It features a GaAs infrared diode emitter optically coupled to a silicon planar phototransistor detector, ensuring efficient optical coupling with low coupling capacitance and a high isolation voltage.
This optocoupler is designed to deliver high reliability and excellent current transfer ratio (CTR) linearity depending on forward current. It boasts a fast switching time and low CTR degradation, making it suitable for precise and demanding electronic applications. Additionally, it offers a 6V reverse voltage rating for enhanced circuit protection.
Key Features
- High reliability
- Excellent CTR linearity depending on forward current
- Fast switching time
- Low CTR degradation
- Low coupling capacitance
- 6V reverse voltage
Applications
This component is ideally suited for use in power management systems, communications networking equipment, and portable devices.
Specifications
- Channels: 1
- Case Style: Surface Mount DIP
- Pins: 4
- Forward Current (If Max): 60mA
- Isolation Voltage: 5.3kV
- CTR Min: 160%
- Collector Emitter Voltage (V(br)ceo): 70V
- Height: 43 mm
- Width: 33 mm
- Depth: 15 mm
- Weight: 0.537 grams
