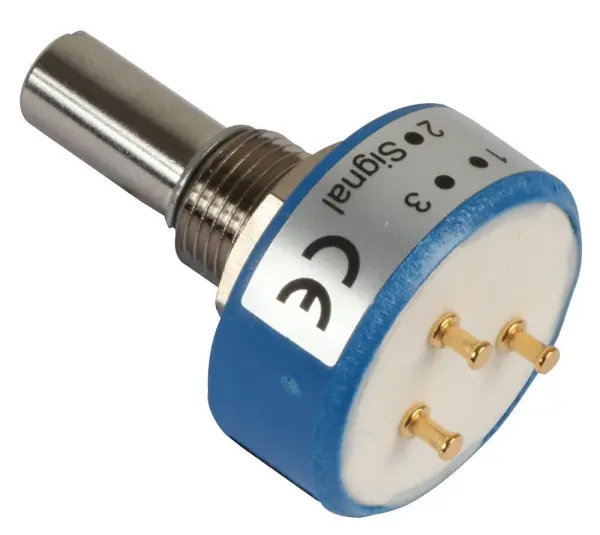

Vishay 357 Series 20kΩ Linear 1W Panel Mount Potentiometer

The Vishay 357 Series potentiometer is a durable panel mount device with a conductive plastic track, designed for smooth and precise adjustment in a wide range of industrial and electronic applications. The unit offers a track resistance of 20kΩ with a linear taper, providing straightforward, predictable output control suitable for volume, gain, and voltage reference adjustments.

Built for reliability, this single-gang potentiometer handles a power rating of 1W, making it a robust choice for everyday circuit trimming and calibration tasks. Adjustment is simple through a screwdriver slot, and the turret terminals ensure secure, stable solder connections. The component operates reliably across a broad temperature range from -55°C to 125°C, maintaining steady performance in demanding environments. With a resistance tolerance of ±20%, this potentiometer is ideal for applications where precise value matching is not critical but consistent performance is essential.

Key Specifications

_ Resistance Value: 20kΩ _ Taper: Linear _ Power Rating: 1W _ Adjustment Type: Screwdriver Slot _ Mounting Style: Panel Mount _ Number of Gangs: 1 _ Number of Turns: 1 _ Terminals: Turret _ Resistance Tolerance: ±20% _ Temperature Coefficient: ±600ppm/°C _ Operating Temperature: -55°C to +125°C _ Product Dimensions: Width 33mm, Height 43mm, Depth 15mm

This Vishay 357 Series potentiometer is a reliable and cost-effective solution for engineers and hobbyists needing a straightforward, high-quality control component.
