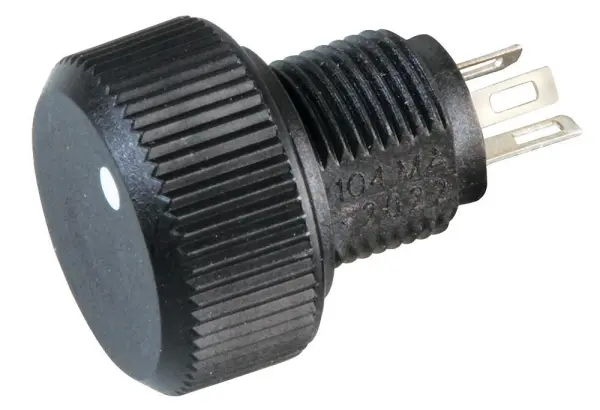

VISHAY P16 Series 1W 10kΩ Linear Panel Mount Potentiometer
VISHAY P16 Series 10kΩ linear potentiometer, 1W power rating, cermet track, for panel mounting in electronic controls.
The VISHAY P16 Series is a 1W, 10kΩ linear potentiometer designed for reliable panel mounting. Featuring a robust cermet resistor track, it delivers precise resistance adjustment across a wide temperature range, from -40°C to 85°C.
Built with a durable plastic housing, this single-gang rotary potentiometer offers a straightforward 1-turn adjustment. It's ideal for applications requiring a stable 10kΩ resistance with a ±20% tolerance and a low temperature coefficient of ±100ppm/°C.
Key Specifications
- Track Resistance: 10kΩ
- Track Taper: Linear
- Power Rating: 1W
- Resistor Technology: Cermet
- Mounting Type: Panel Mount
- Adjustment Type: Rotary (1 Turn)
- No. of Gangs: 1
- Resistance Tolerance: ±20%
- Temperature Coefficient: ±100ppm/°C
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 33mm (W) x 43mm (H) x 15mm (D)
- Weight: 5 grams
This compact and efficient component is a trusted choice for building and repairing electronic control circuits where dependable variable resistance is needed.
