VISHAY Single Phase Bridge Rectifier Module, 1.2kV, 35A - 35

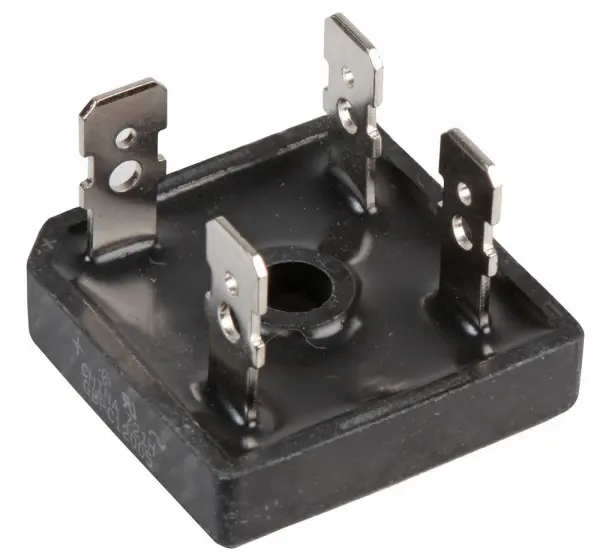

The VISHAY VS-GBPC Series Bridge Rectifier Module represents a compact and reliable solution for converting alternating current (AC) to direct current (DC). Designed as a single-phase bridge, this encapsulated module delivers efficient rectification for a wide variety of mains and power supply applications. Its extremely compact design ensures an excellent power-to-volume ratio, making it suitable for space-constrained assemblies while maintaining high performance and thermal characteristics.

Constructed with glass passivated diode chips, the module ensures stable operation and long-term reliability. A centre hole is provided for secure mechanical mounting. For easy identification during installation, a positive polarity symbol is moulded directly onto the robust plastic case, helping to prevent wiring errors.

Key Features & Technical Specifications

Engineered for demanding environments, this rectifier module offers a high repetitive peak reverse voltage of 1.2kV and can handle an average forward current of 35A. It features a low forward voltage, contributing to reduced power losses and improved system efficiency. The module is designed for surface mounting and is capable of withstanding high surge currents, ensuring robustness against inrush conditions.

With a maximum operating temperature of 150°C, it is built to perform reliably in applications with significant thermal loads. The electrical isolation provided by the base plate meets stringent safety standards, offering high RMS isolation voltage. This combination of compact size, high current capacity, and robust electrical ratings makes it an ideal choice for engineers designing power supplies, battery chargers, and industrial control systems where dependable AC to DC conversion is critical.

Typical Applications

This versatile bridge rectifier is commonly employed in mains rectification circuits, serving as the core component in power

Variant Details

• Size: 35
