WAGO 221 Series 3 Pole Terminal Block, 6mm², 41A, 450V
Versatile WAGO 221 Series splicing connector with lever lock, suitable for 0.5–6mm² conductors. 41A, 450V – ideal for industrial & HVAC use.

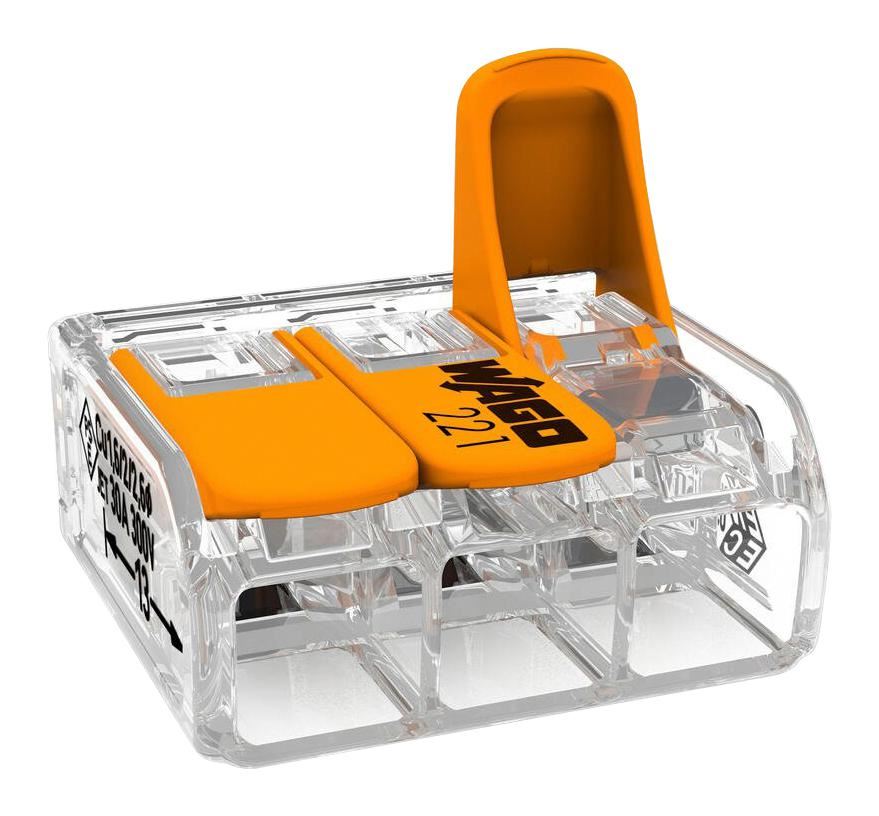

The WAGO 221 Series 3 Pole Terminal Block is a high-performance splicing connector featuring a lever lock mechanism, providing secure and reliable connections for both solid and stranded conductors. This terminal block is designed for versatility, accommodating conductor sizes from 0.5 to 6mm², making it suitable for a wide range of applications.
With a 41A current rating and 450V voltage rating, this connector ensures robust performance in demanding environments. The side entry wiring type facilitates easy installation, while the orange levers offer clear visual identification of the locking mechanism.
Specifications
- Material: Clear housing with orange levers
- Connector Type: 3-way terminal block
- Wire Compatibility: Solid, stranded, and fine-stranded conductors (0.5–6mm²/20–10AWG)
- Current Rating: 41A
- Voltage Rating: 450V

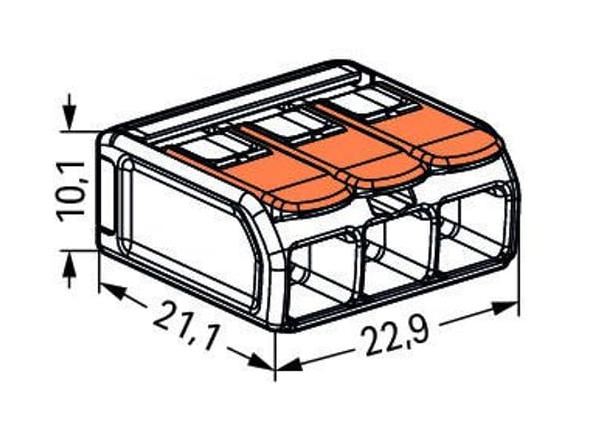

- Dimensions: 22.9mm (W) × 10.1mm (H) × 21.1mm (D)
- Ambient Temperature Range: Up to 85°C
- Wire Connection Method: Push-in lock
Applications
- Industrial electrical installations
- Communications and networking systems
- Lighting solutions
- Security and signalling systems
- HVAC (Heating, Ventilation & Air Conditioning)
The WAGO 221 Series is engineered for efficiency and durability, ensuring a secure connection in professional electrical setups.
- Industrial electrical installations
- Communications and networking systems
- Lighting solutions
- Security and signalling systems
- Material: Clear housing with orange levers
- No. of Positions: 3 ways
- Wire Size: 20AWG to 10AWG (0.5–6mm² CSA)
- Current Rating: 41A
- Voltage Rating: 450V
- Dimensions: 22.9mm (W) × 10.1mm (H) × 21.1mm (D)
- Ambient Temperature: Up to 85°C
- Wire Connection Method: Push-in lock
- Product Range: 221 Series
Always follow local regulations and product guidance.
