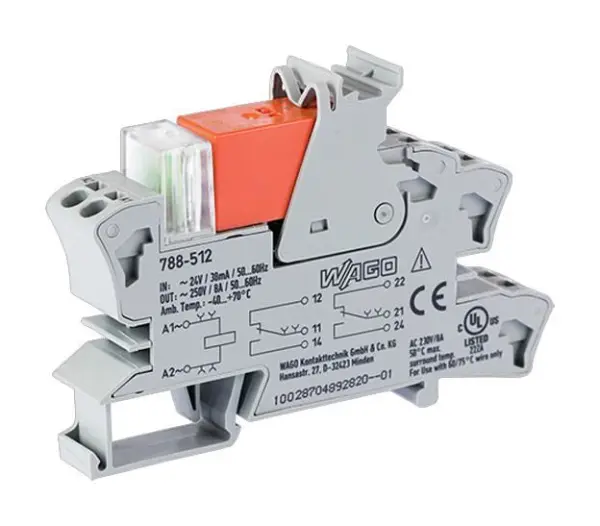

WAGO AC DIN Rail Relay Module, Double Pole Double Throw, 2 Changeover, 8A - 24V

The WAGO AC DIN Rail Relay Module is a high-performance switching solution designed for reliable control in industrial and automation applications. Featuring a Double Pole Double Throw (DPDT) contact configuration with two changeover contacts, this relay module provides versatile switching capabilities for a wide range of electrical circuits.

Equipped with WAGO's innovative Push-in Cage CLAMP® connection technology, the module ensures fast, secure, and maintenance-free wiring. It accommodates both solid and fine-stranded conductors ranging from 0.34mm² to 2.5mm² (22AWG to 14AWG), offering excellent flexibility for various installation requirements. The required strip length for conductors is between 9mm and 10mm.

A built-in red LED status indicator allows for quick and easy visual monitoring of the relay's operating state, simplifying troubleshooting and system checks. The relay is engineered for straightforward mounting on a standard DIN rail, making integration into control cabinets seamless and efficient.

With a contact current rating of 8A and a contact voltage of 250V AC, this module is well-suited for demanding electrical loads. The silver nickel contact material guarantees excellent conductivity and long-term switching reliability, ensuring your automation systems run smoothly.

Variant Details

• Size: 24V
