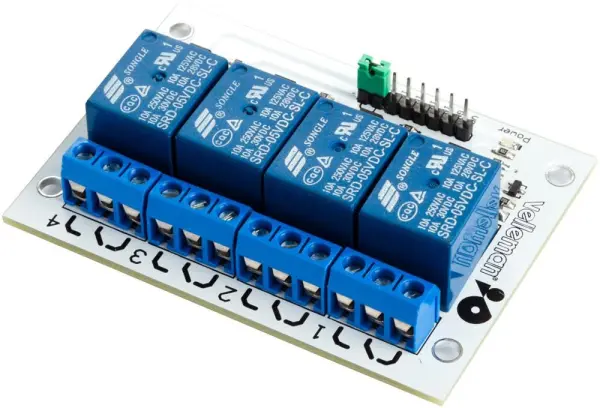

Whadda 4 Channel Relay Module 250V AC 10A
Control high-current devices with this 4-channel relay module. Opto-isolated inputs, 5-12V DC, 250V AC 10A switching.
Control High-Power Devices with Ease
The 4 Channel Relay Module from Whadda UK allows you to control various devices and equipment with high current requirements. Featuring a four-channel interface that can be controlled by any microcontroller, this module is ideal for a wide range of electronics projects.
Standard & Opto-Isolated Interface
With a standard interface that can be connected directly to any microcontroller, integration is straightforward. The opto-isolated inputs provide electrical separation between the control and output circuits, enhancing safety and reliability. Relay output status LED indicators offer clear visual feedback on the state of each relay.
High-Power Switching
The module can switch up to 250V AC 10A or 30V DC 10A (non-inductive loads), making it suitable for controlling lights, motors, pumps, and other high-power devices in your projects. The input current of 5mA to 15mA and input voltage of 5V to 12V DC ensure compatibility with most microcontrollers.
Compact Design
With dimensions of 19 x 75 x 55mm (HxWxD) and a weight of just 80 grams, this relay module is compact and easy to incorporate into your existing setups. The included relay module is ready to use, making it perfect for both hobbyists and professionals.
Specifications
- Input Voltage: 5V to 12V DC
- Input Current: 5mA to 15mA
- Output: 250V AC 10A, 30V DC 10A (non-inductive)
- Channels: 4
- Opto-isolated inputs
- Relay output status LED indicators
- Dimensions (HxWxD): 19 x 75 x 55mm
- Weight: 80g
- For Use With: Microcontrollers
