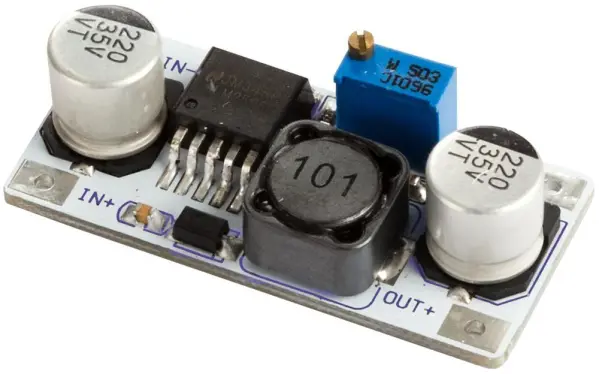

Whadda UK LM2596S DC-DC Step-Down Buck Converter Module

The Whadda UK LM2596S DC-DC Step-Down Buck Converter Module is an efficient and reliable power regulation solution for a vast range of electronics projects. Based on the popular LM2596S switching regulator chip, it allows you to step down a higher input voltage to a stable, lower output voltage with high efficiency, minimising heat loss compared to traditional linear regulators.

This versatile module is fully adjustable, accepting an input voltage range of 3V to 40V DC and providing a smooth, adjustable output from 1.25V up to 35V DC. With a substantial maximum continuous output current of 2.5A, it is capable of powering motors, LED strips, microcontrollers, and other demanding components. A small onboard multi-turn potentiometer makes voltage adjustment precise and straightforward.

Key Features & Applications

• High-Efficiency Switching Design: Reduces power dissipation and heat generation, making it ideal for battery-powered or energy-sensitive applications.
• Wide Voltage Range: Perfect for converting power from sources like 12V car batteries, 24V supplies, or variable bench supplies down to the specific voltages required by your circuits (e.g., 5V for Arduino, 3.3V for sensors).
• Compact Form Factor: Its small footprint (approx. 43mm x 33mm x 15mm) allows for easy integration into prototypes, enclosures, and permanent installations.
• Robust Construction: Features standard 0.1” pitch pin headers for simple connection to breadboards, PCBs, or wire terminals.

Important Usage Note: For applications where power dissipation exceeds approximately 10W, the use of an external heatsink is strongly recommended to ensure optimal performance and long-term reliability (heatsink not included). This module is an indispensable tool for hobbyists, makers, and engineers working with Arduino, Raspberry Pi, robotics, and custom electronic designs, providing a safe and
