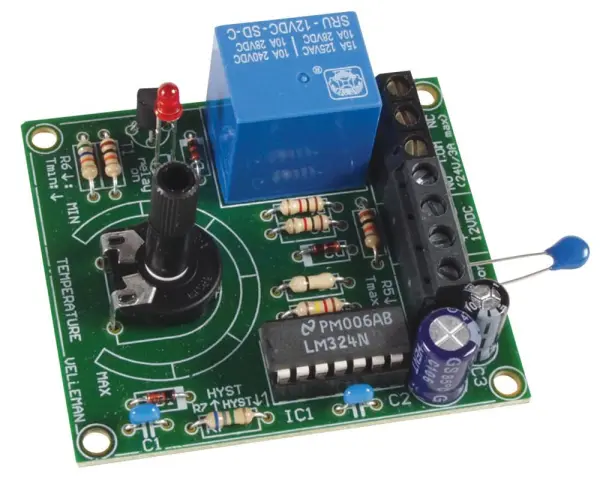

Whadda UK Thermostat Mini Kit

The Whadda UK Thermostat Mini Kit is a versatile and reliable general-purpose thermostat designed for precise temperature control. Equipped with an NTC temperature sensor, this kit ensures accurate monitoring and regulation within an approximate range of +5°C to +30°C, making it suitable for a variety of heating or cooling applications.

Featuring an output relay with a clear LED indicator, the thermostat provides visual confirmation of the relay status, allowing for easy troubleshooting and system monitoring. The relay has a power rating of 24Vdc/ac at 3A, while the unit itself requires a 12Vdc power supply with a current draw of 100mA.

This mini kit is compact and designed for easy integration into your electronic projects. The module dimensions are 54 x 28 x 62mm (WxHxD), ensuring it can fit into tight enclosures. The overall product dimensions are 43mm in height, 33mm in width, and 15mm in depth, with a lightweight design of just 64 grams.

Key Features

• General-purpose thermostat
• NTC temperature sensor
• Output relay with LED indicator
• Temperature range: +5°C to +30°C approx.
• Relay power rating: 24Vdc/ac, 3A
• Power supply: 12Vdc, 100mA

Whether you are building a custom climate control system or need a reliable thermostat for an electronics project, the Whadda UK Thermostat Mini Kit delivers consistent performance and straightforward operation.
