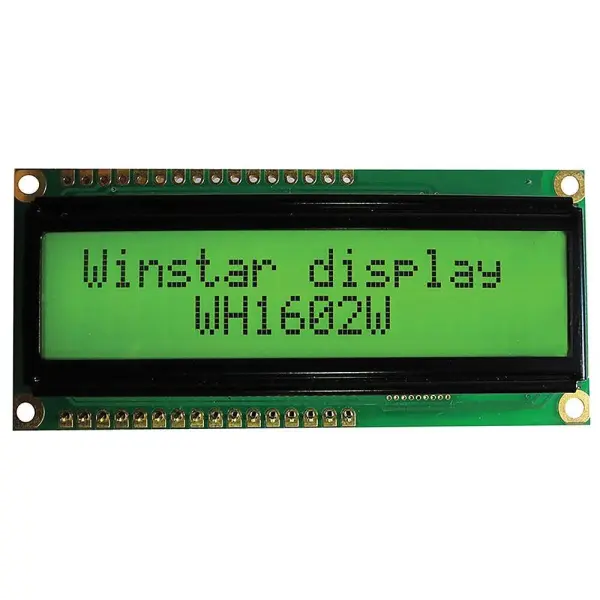

Winstar 16x2 Character LCD Display Module, Yellow/Green, LED Backlit

The Winstar 16x2 Character LCD Display Module offers a 16 x 2 character display with a yellow-green STN positive transflective panel.

Overview

The module delivers sharp black characters on a bright yellow-green background, supporting readability in a range of lighting conditions. It is designed for embedded and interface projects and for landscape orientation. The transflective polariser enhances contrast in both ambient and backlit conditions, while the integrated yellow-green LED backlight supports visibility in low-light environments.

Key Features

• Viewing area of 66 mm x 16 mm
• Module dimensions of 80 mm x 36 mm x 13 mm, suited to space-constrained applications
• English and Japanese standard font support
• 5V logic voltage
• Duty cycle of 1/16 with a 6 O'clock viewing direction
• Operating temperature range of -20°C to 70°C
• Module weight of 33 g
• No touchscreen included

Display Performance

Key character parameters include a character size of 2.95 mm x 5.55 mm and a dot pitch of 0.60 mm x 0.70 mm, which together support crisp, legible characters. The active area measures 56.2 mm x 11.5 mm, and the display is rated for operation in temperatures ranging from -20°C to 70°C.

Applications

This module suits embedded and interface projects, space-constrained designs, and applications where viewing in low-light conditions is required. Its rated temperature range supports use across a wide range of environments.
