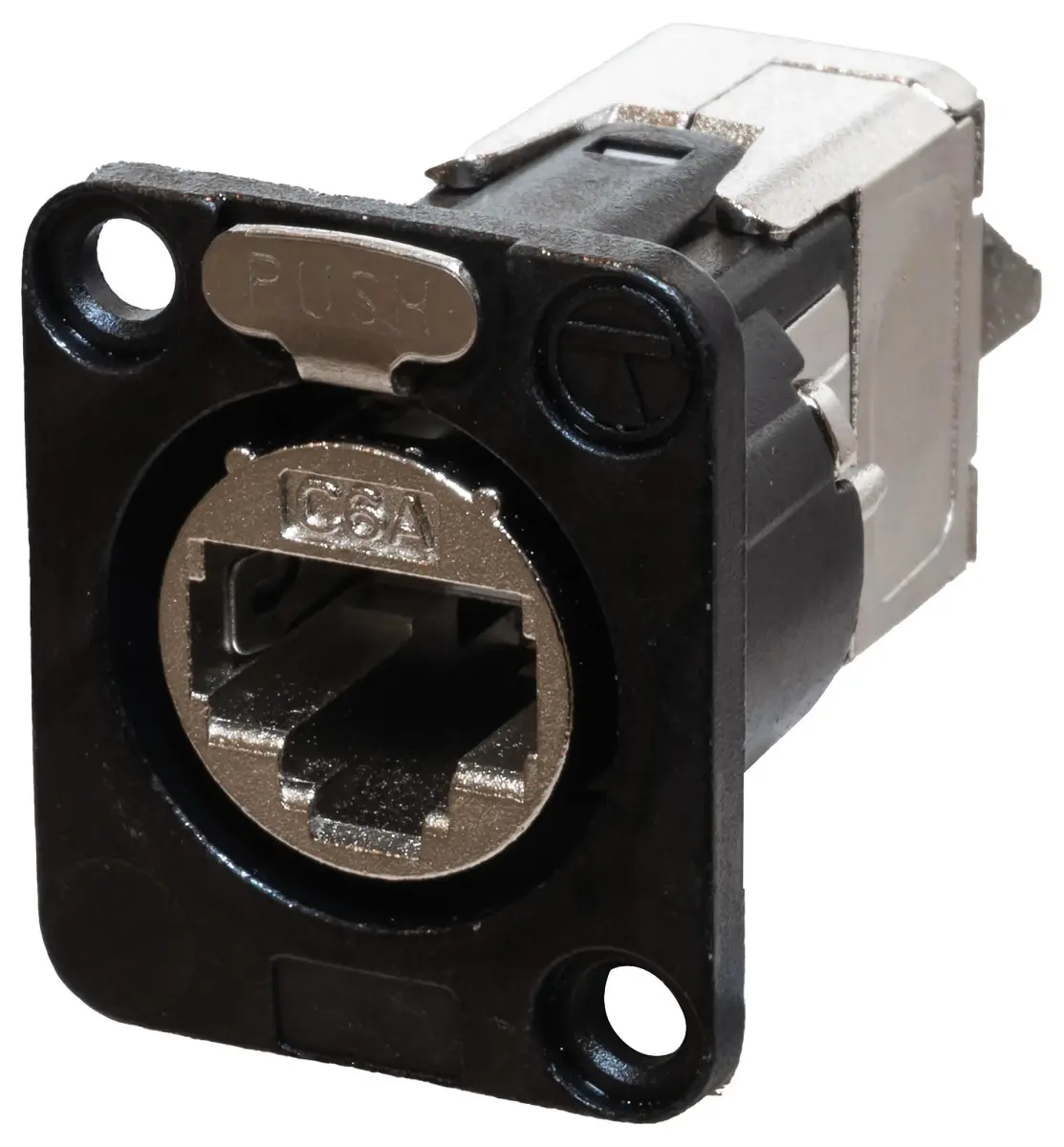

XLR Type Category 6A STP IDC Fronted Socket Black

The XLR Type Category 6A STP IDC Fronted Socket is a high-performance, ruggedised network connector engineered for demanding installations. With its robust die-cast and fully shielded body, it excels in challenging environments by providing superior protection against electromagnetic interference and eliminating alien cross-talk, ensuring consistent, high-speed data transmission.

Featuring the familiar and secure industry-standard XLR latch-locking mechanism, this socket guarantees a reliable, vibration-resistant connection that comfortably meets Cat6A performance standards. It is designed for easy integration, mounting directly into standard XLR-style panel cut-outs for a professional finish.

A key user-friendly feature is the tool-less “butterfly style” termination levers. These allow for quick, easy, and reliable connections without the need for specialised tools, significantly reducing installation time and complexity. The socket supports dual 568 A/B wiring schemes for maximum compatibility with existing network infrastructures.

Specifications & Compatibility

• Connector Type: RJ45 Jack
• LAN Category: Cat6a
• Shielding: Fully shielded (STP)
• Construction: Durable die-cast metal body
• Termination: Tool-less IDC (Insulation Displacement Contact) with butterfly levers
• Wiring Scheme: Dual 568A/B
• Cable Compatibility: Suitable for 22–26 AWG solid wire
• Core Diameter Range: 0.6mm – 1.52mm
• Cable Outer Diameter (OD): 6mm – 8.5mm
• Mounting: Panel mount
• Orientation: Straight

Built to last, this high-quality socket from TUK LTD is an ideal choice for professional audio-visual setups, data centres, industrial networking, and any application where a secure, high-performance, and durable Cat6a connection is required.
