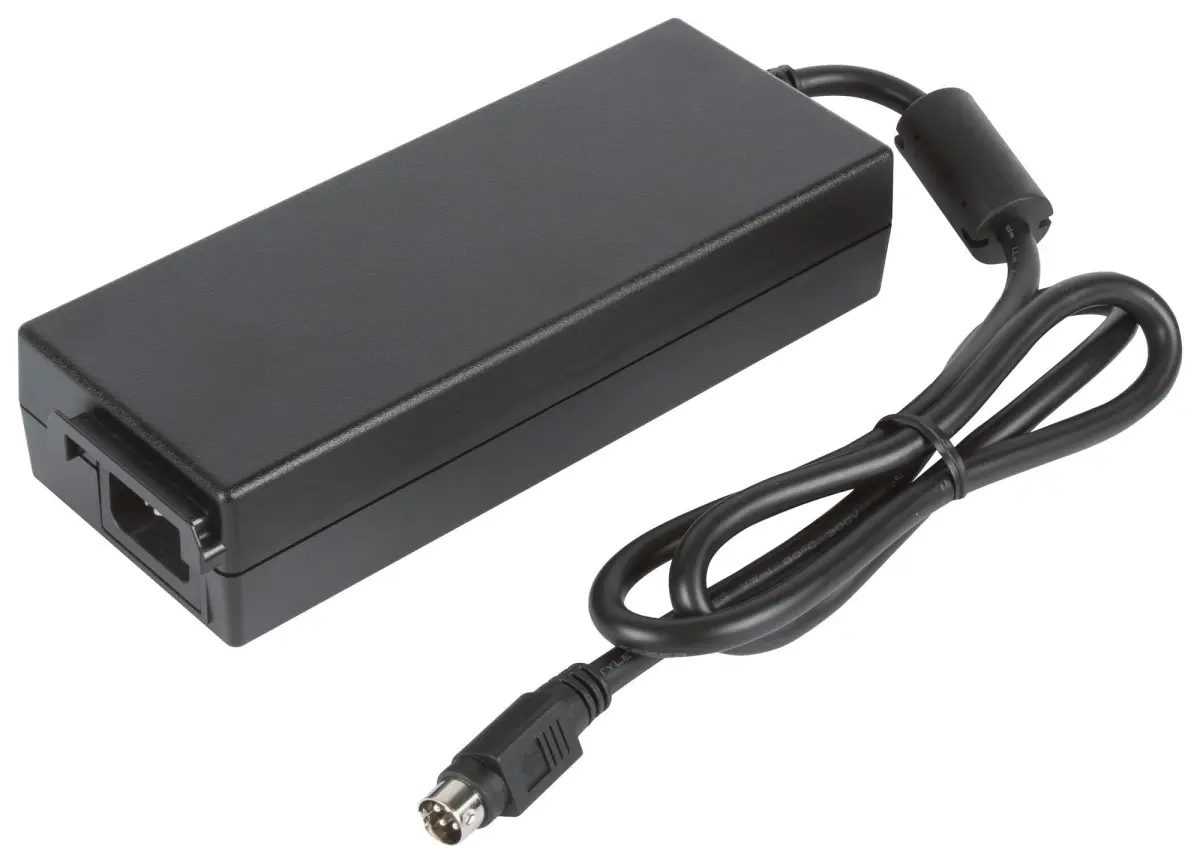

XP Power ALM120 Medical AC/DC Power Supply 12V 10A 120W

The XP Power ALM120 Series is a high-performance enclosed AC/DC power supply, fully approved to international medical and IT equipment safety standards. Designed for reliability in clinical and sensitive environments, it combines high efficiency with minimal standby power consumption, helping to meet stringent environmental legislation.

Its fully sealed enclosure complies with an IP32 environmental rating, featuring a smooth surface finish that is easy to wipe clean, making it ideal for use in medical and laboratory settings. The unit is available in both Class I and Class II versions, offering flexibility for different installation requirements.

Key Features & Specifications

• Medical & Safety Approvals: Compliant with 4th Edition Medical EMC standards and carries full medical IT safety approvals.
• High Efficiency: Meets Energy Efficiency Level VI and EU CoC Tier 2 compliance.
• Low Power Consumption: Features standby power of less than 0.15W.
• Robust Operation: Reliable performance across an operating temperature range of 0°C to 60°C.
• Enhanced Safety: Designed with low earth leakage current for patient and equipment safety.
• Output: Provides a single, fixed output of 12V DC at 10A, delivering a maximum of 120W of power.
• Connection: Equipped with a 4-pin DIN output connector for secure attachment.
• Universal Input: Accepts a wide input voltage range from 80V AC to 264V AC for global use.
• Dimensions: Compact form factor measuring 40mm (H) x 30mm (W) x 25mm (D).
• Weight: Lightweight at 538 grams for easy integration and mounting.

This power supply is an essential component for powering critical medical and IT equipment where safety, reliability, and cleanliness are paramount.
