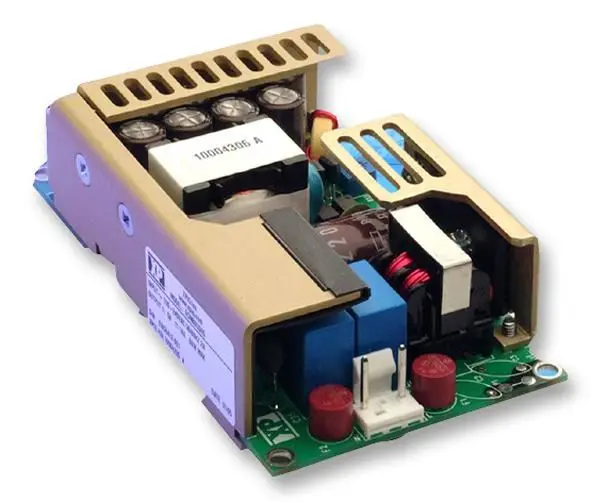

XP Power ECM100UQ 80W 4 Output Open Frame Medical Power Supply

The XP Power ECM100UQ is a versatile and reliable open-frame AC/DC power supply designed for demanding applications, particularly in the medical sector. With a convection-cooled rating of 80W and a forced-cooled capacity of 100W (at 5CFM), it offers robust power delivery for a wide range of electronic equipment.

Engineered with safety and reliability as a priority, it features comprehensive safety protections, including overload, overvoltage, and short-circuit safeguards. This is complemented by essential medical IT equipment approvals, ensuring compliance with strict standards for safety-critical environments. The unit is available with both Class I and II constructions to suit different installation requirements.

Key Features and Performance

The supply's open-frame design provides excellent flexibility for integration into custom enclosures and systems. Its four independent outputs deliver stable voltages at substantial currents, making it suitable for powering complex multi-rail systems. The primary output provides 5VDC at 10A, with supplementary outputs of 24VDC at 2A, 12VDC at 800mA, and a -12V rail at 500mA. This configuration is ideal for powering logic circuits, displays, analogue components, and operational amplifiers.

The wide input voltage range of 90V AC to 264V AC makes it suitable for global deployment. The convection cooling mode ensures silent operation for lower power requirements, while the forced-air cooling option unlocks the full 100W power potential when higher performance is needed.

Applications and Use

This power supply is a cornerstone component for professional and medical-grade electronic systems where dependable, clean, and approved power is non-negotiable. Its compact dimensions (40mm x 30mm x 25mm) and proven reliability make it an excellent choice for OEMs and system integrators.
