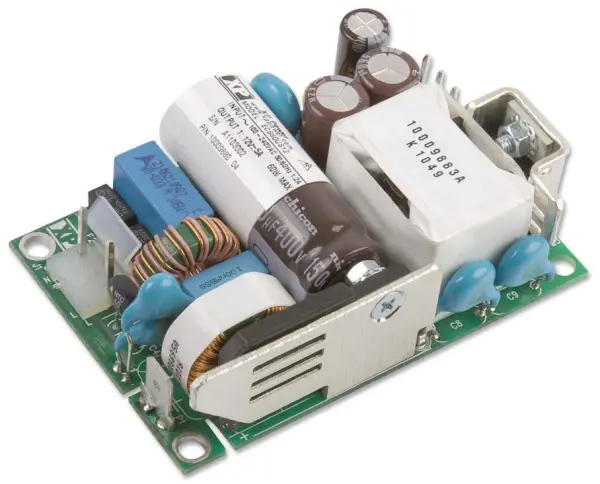

XP Power ECS60 24V 2.5A 60W Medical Power Supply

The XP Power ECS60 Series is a high-efficiency, open-frame AC-DC power supply engineered to meet stringent environmental and safety standards. Designed with a focus on minimising no-load power consumption and maximising operational efficiency, it facilitates equipment design in compliance with the latest environmental legislation.

This compact unit delivers a reliable 60W of power from a single, adjustable 24VDC output, making it an exceptionally versatile component for critical applications. It features a very high convection-cooled power density within an industry-leading 2” x 3” (51mm x 76.2mm) footprint and a low 0.95” profile, ensuring full 1U compatibility for space-constrained installations.

Key Features & Compliance

• Medical & IT Safety: Approved for IT Medical 3rd Edition safety standards, offering 2 x MOPP (Means of Patient Protection) with a supporting Risk Management File, making it ideal for medical and IT equipment (ITE).
• Dual Installation Class: Suitable for both Class I and Class II applications, providing flexibility for various system designs.
• High Efficiency & Low Leakage: Boasts efficiency levels up to 89%, minimising heat generation. It features very low earth leakage currents (80µA at 115VAC or 160µA at 230VAC) and meets EN55011/22 Level B for conducted emissions.
• Robust Design: Dual-fused for compliance with IEC60601-1 and built to deliver full rated power at 50°C ambient, with derated operation possible up to 70°C.
• Minimal Standby Consumption: Consumes less than 0.3W under no-load conditions, aiding in overall system energy reduction.

With its combination of a tiny form factor, high reliability, and comprehensive medical-grade approvals, the ECS60 is a trusted power solution for designers of industrial, IT, and medical equipment where safety, size, and efficiency are paramount.
