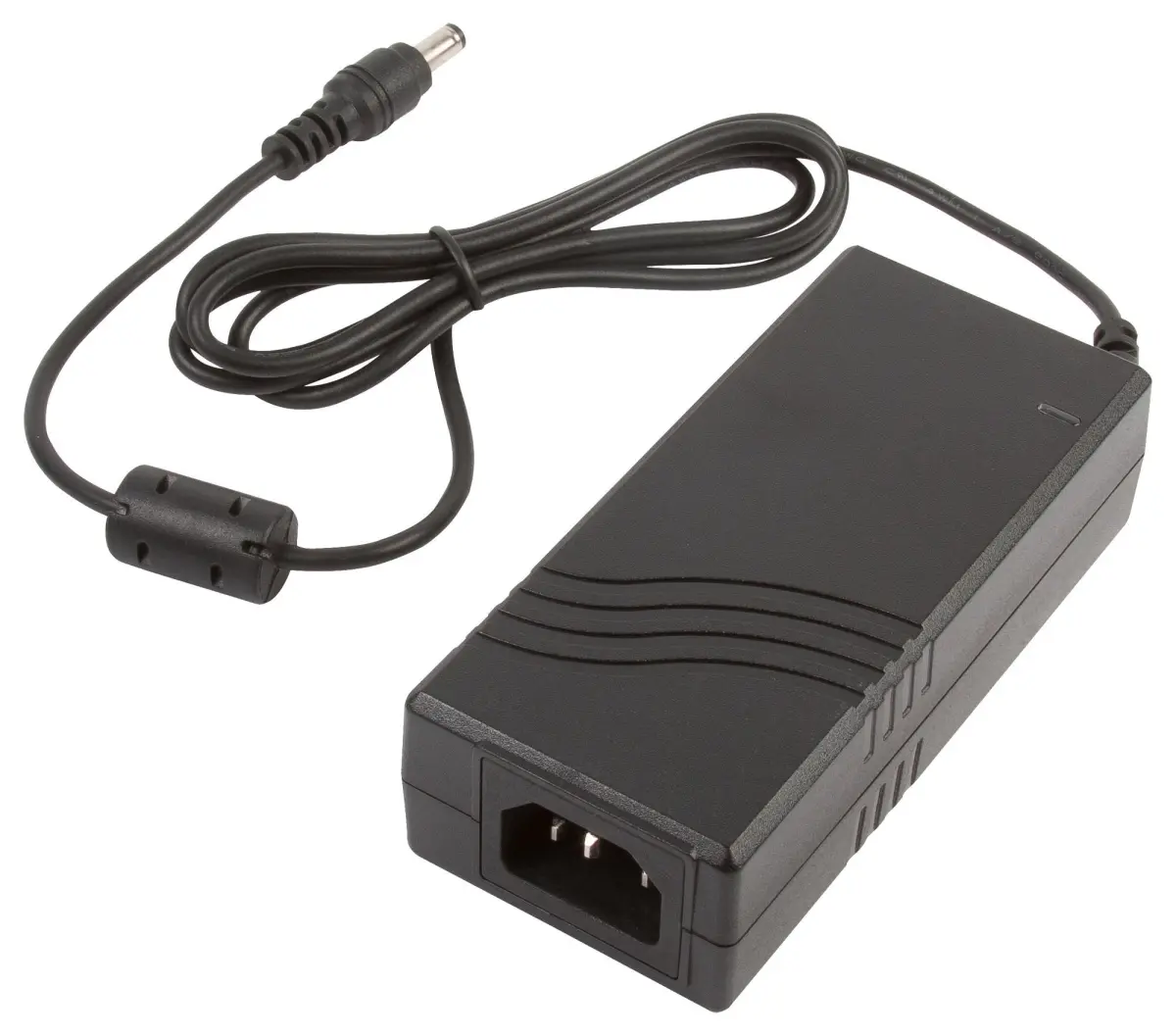

XP Power VEC50 Series 50W Desktop Power Supply, 19V, 2.63A, 2.5mm Plug

The XP Power VEC50 Series is an external, desktop style AC/DC power supply delivering reliable and efficient power in a compact form factor. Meeting the latest Energy Efficiency standards, this power supply is approved as a Limited Power Source and qualifies for Energy Efficiency Level VI and CoC Tier 2 requirements, ensuring responsible energy consumption.

With a maximum output power of 50W, this unit provides a fixed 19VDC output with a current of 2.63A. The output is delivered through a 2.5mm x 5.5mm x 11mm barrel plug with center positive polarity, making it suitable for a wide range of ITE (Information Technology Equipment) applications.

Engineered for high power density, the VEC50 series operates within a temperature range of 0°C to 65°C, ensuring stable performance in various environments. The unit accepts a universal input voltage of 90V AC to 264V AC and features an IEC 60320 C14 plug type for easy connectivity.

Key features include:

• Energy Efficiency Level VI and CoC Tier 2 compliant
• Limited Power Source approved
• Less than 0.15W standby power consumption
• China Compulsory Certification (CCC) qualified
• Operating temperature range: 0°C to 65°C
• High power density design
• Single output with fixed voltage

This power supply is ideal for power management applications, offering efficiency, reliability, and safety in a compact desktop format.

Specifications

• Maximum Output Power: 50W
• Output Voltage: 19VDC
• Output Current: 2.63A
• Output Connector: Barrel Plug Center Positive 2.5mm x 5.5mm x 11mm
• Input Voltage: 90V AC to 264V AC
• Product Range: VEC50 Series
• Plug Type: IEC 60320 C14
