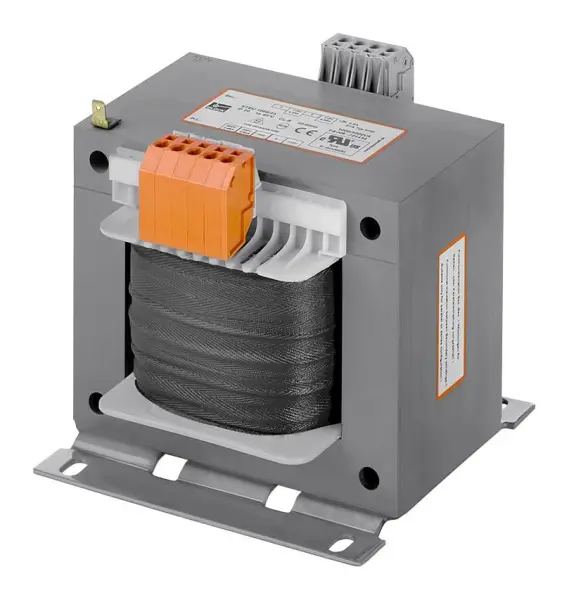

BLOCK Transformer, 100VA, 230/400V - 24V

The BLOCK Transformer, 100VA, 230/400V is a highly reliable control and safety isolating transformer designed to provide secure electrical isolation between the input and output sides. Engineered to supply control systems in compliance with EN60204, this transformer is also suitable for setting up protective separation as a protective measure in accordance with VDE 0100.

Built for demanding industrial environments, it features vacuum impregnation which ensures very good corrosion protection and notably low noise operation. The transformer boasts excellent switch-on behaviour thanks to reduced starting currents, while the compact construction design delivers a high power density, making it an efficient choice for power management applications.

Installation and wiring are straightforward; the unit is equipped with spring-clamp terminals for quick cabling and contact-protected screw connection terminals complying with UVV BGV A5. Simple mounting is guaranteed by a robust metal footplate featuring oval slots. Additionally, the transformer offers dual primary input voltages of 230 and 400 Vac, alongside primary side ±15 V tappings for precise voltage adjustment. This versatile isolating transformer is an ideal solution for industrial power management and safety isolation requirements.

Variant Details

• Size: 24V
