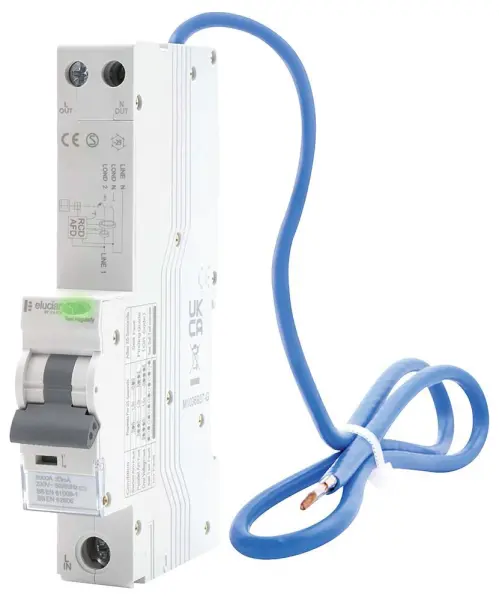

ELUCIAN Single Pole AFDD & RCBO, C Curve, 6kA, 30mA - 20A

The ELUCIAN Single Pole AFDD & RCBO is a sophisticated combination device designed to provide comprehensive electrical protection within consumer units. It integrates Arc Fault Detection Device (AFDD) and Residual Current Circuit Breaker with Overcurrent (RCBO) functionality, safeguarding circuits against arc faults, earth leakage, and overloads. This makes it a crucial safety component for modern electrical installations, helping to prevent electrical fires and enhance overall system integrity.

This device features a C curve tripping characteristic, making it well-suited for protecting standard domestic and commercial circuits with typical inductive loads, such as lighting and general-purpose sockets. It is rated for a breaking capacity of 6kA and a sensitivity of 30mA, offering reliable protection against both fault currents and potentially dangerous residual currents.

Designed for ease of installation, the unit is a single-pole and neutral model, meaning it requires a neutral connection for correct operation. A notable feature is its compatibility with a lockable switch kit (sold separately), which allows the device to be secured in the 'off' position for maintenance safety or to prevent unauthorised circuit activation. For installer convenience, a pre-attached neutral cable with a generous length of 450mm is provided, facilitating simpler and neater wiring within the consumer unit enclosure.

Built to exacting standards, the ELUCIAN AFDD & RCBO combines robust construction with reliable performance, ensuring long-term protection for electrical circuits. Its compact design allows for efficient use of space within the consumer unit, fitting seamlessly alongside other modular devices.

Variant Details

• Size: 20A
