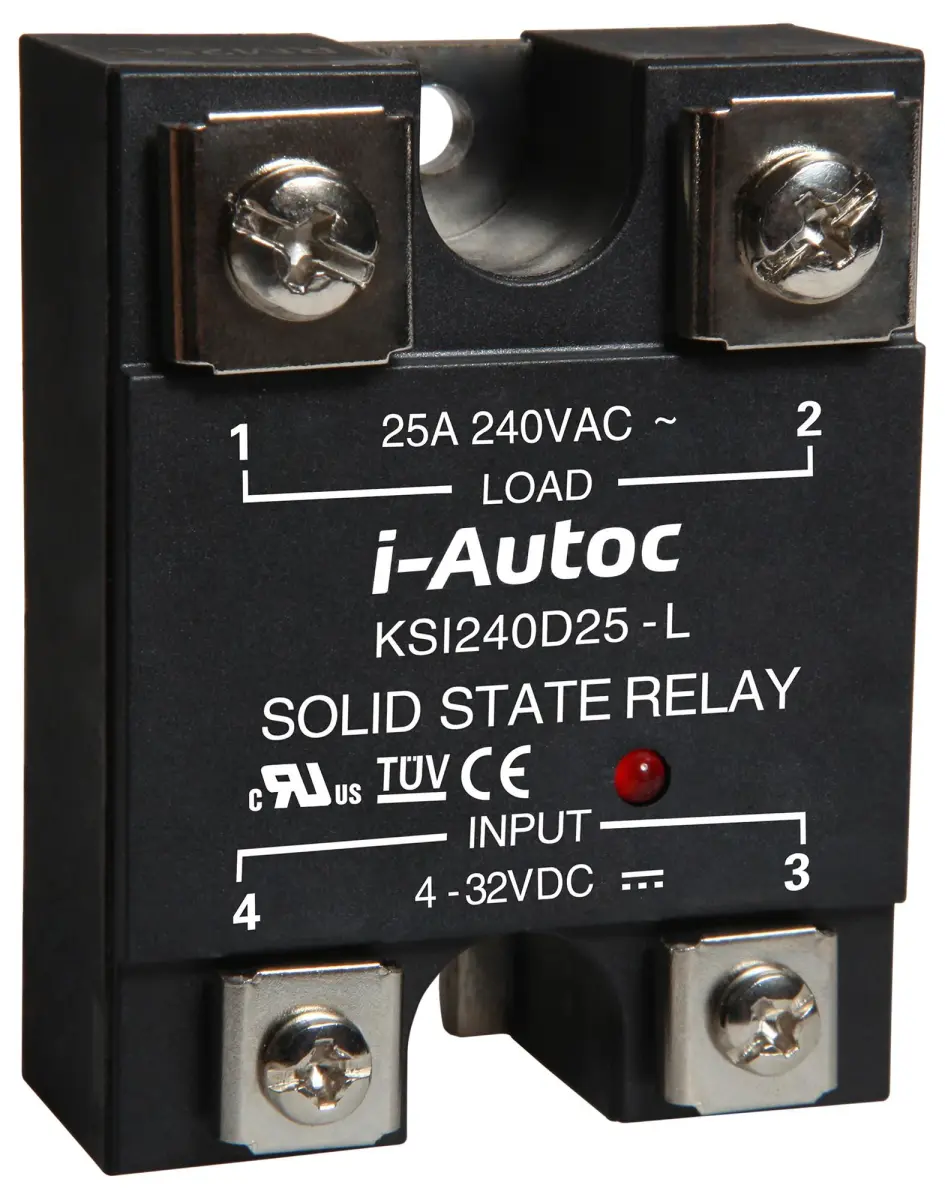

I-AUTOC Single Phase AC Output Solid State Zero Crossing Panel Mount Relay, 240 - 25A

The I-AUTOC Single Phase AC Output Solid State Zero Crossing Panel Mount Relay is a robust and reliable switching solution designed for a wide range of industrial and commercial applications. This solid state relay (SSR) ensures clean, noise-free switching thanks to its zero crossing detection, which activates the output precisely when the AC load voltage crosses zero, minimising electrical stress and extending the lifespan of connected equipment.

Featuring a high dielectric strength of 4000Vrms, this relay provides excellent isolation between control and load circuits, enhancing safety and system reliability. The output device utilises a robust SCR/Triac design capable of handling load currents up to 100A, making it suitable for demanding resistive or inductive loads. With a rapid maximum turn-on time of just 1ms, this relay delivers responsive and efficient performance.

Versatile and User-Friendly

This panel mount relay accepts a versatile control voltage range of 4VDC to 32VDC, making it compatible with most standard control systems, PLCs, and microcontrollers. The screw terminals simplify wiring, ensuring secure and reliable connections in any installation. An integrated LED indicator provides clear visual confirmation of the relay's operational status, allowing for quick diagnostics and monitoring.

Built to withstand harsh environments, this relay operates reliably in temperatures ranging from -30°C to 80°C. Its compact panel mount design, measuring just 43mm in height, 33mm in width, and 15mm in depth, saves valuable space in control cabinets. Whether used in heating systems, motor controls, lighting circuits, or industrial automation, this I-AUTOC solid state relay delivers dependable performance and long service life.

Specifications

• Dielectric Strength: 4000Vrms
• Load Voltage Range: 48V AC to 280V AC
• Output Device: SCR / Triac
• **Maximum Turn On

Variant Details

• Size: 25A
