IQD 8MHz Crystal, SMD, 11.4mm x 4.9mm, 30pF, 50ppm

The IQD LFXTAL011301 is a precision surface-mount device (SMD) crystal oscillator, engineered for reliable clock timing in a wide range of electronic applications. Its 8MHz frequency and 30pF load capacitance ensure stable and accurate signal generation, crucial for maintaining system synchronisation.

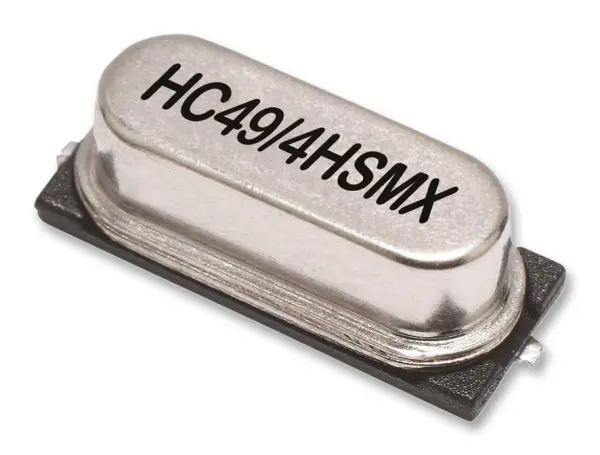

Housed in a compact, industry-standard HC49/4HSMX Series package measuring 11.4mm by 4.9mm, this crystal features a robust resistance-welded construction. It is hermetically sealed in an inert atmosphere with glass-to-metal seals on the leads, providing exceptional protection against environmental contaminants and ensuring long-term performance stability. The gull-wing mounting leads, attached to a plastic former, offer reliable solder joints for secure PCB attachment.

With a frequency tolerance of ±30ppm and a frequency stability of ±50ppm, this component delivers excellent precision. It operates in fundamental mode with a maximum equivalent series resistance (ESR) of 40Ω. Furthermore, it boasts a very low ageing rate of ±5ppm per year maximum, guaranteeing consistent performance over the product's lifespan within its operating temperature range of -10°C to +60°C.

This high-quality SMD crystal is an ideal choice for designers and engineers seeking a dependable timing solution for microprocessor clocks, communication devices, and other digital systems where accuracy and durability are paramount.
