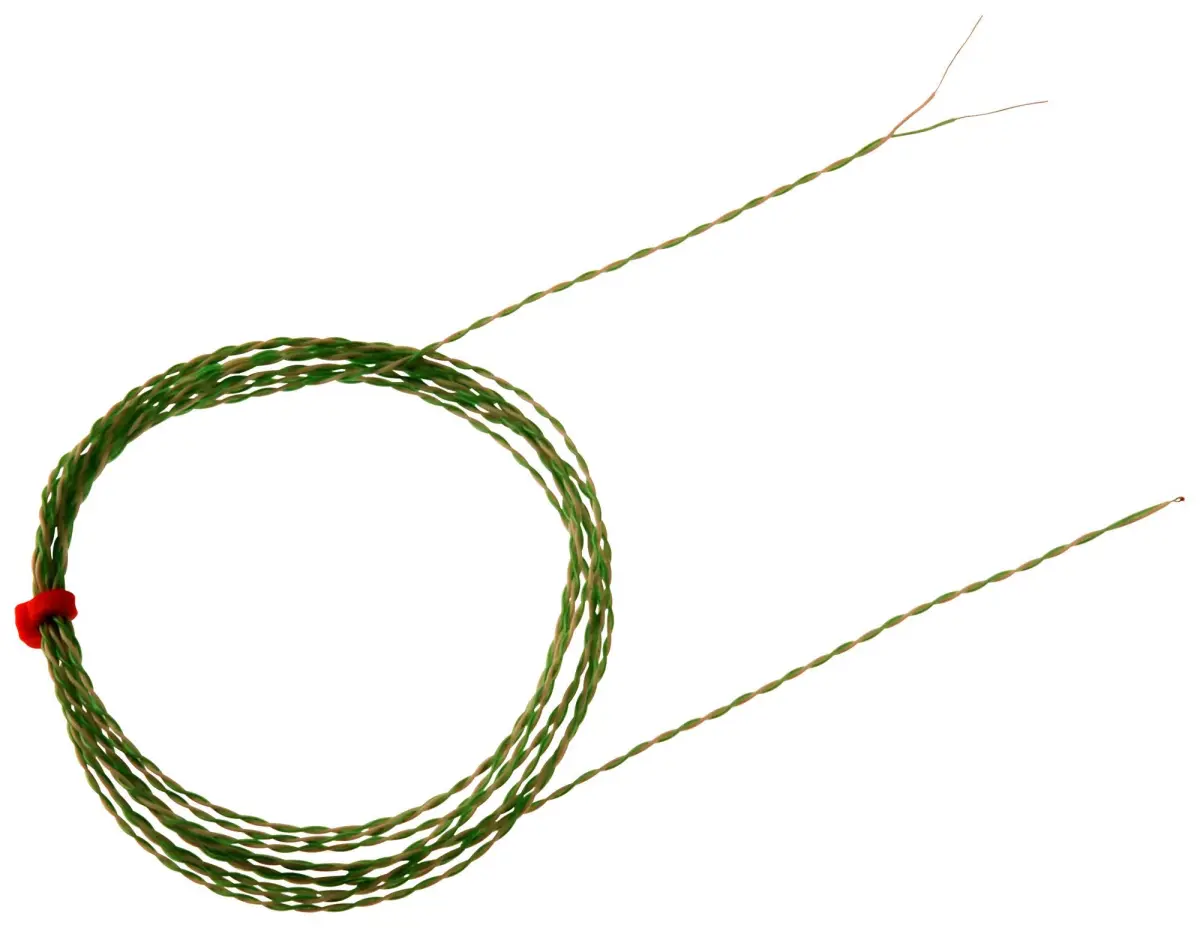

LABFACILITY PTFE Type K Thermocouple - 2m

The LABFACILITY PTFE Type K Thermocouple is a precision temperature sensor designed for accurate and reliable measurement in demanding environments. Featuring an exposed welded-tip junction, this thermocouple provides fast response times, making it ideal for applications where rapid temperature changes need to be captured. The PTFE insulation offers excellent mechanical strength and flexibility, while also providing resistance to oils, acids, and other adverse fluids, ensuring long-lasting performance in harsh conditions.

This thermocouple is constructed with a twin twisted cable, with the positive wire tail distinguished by a green colour and the negative wire tail by white, following the colour code to IEC 584-3 for easy identification. It supports a wide temperature range from -75°C to +260°C, with tolerance to IEC 584 Class 1, guaranteeing high accuracy. The bare wire termination allows for flexible installation in various instrumentation and test measurement setups.

Key Features:

• Exposed welded junction for fast response
• PTFE insulation resistant to oils, acids, and adverse fluids
• Type K thermocouple with IEC 584 Class 1 tolerance
• Colour-coded wire tails (green positive, white negative) per IEC 584-3
• Unshielded, bare wire termination for versatile connections

Whether used in laboratory instrumentation or industrial testing, this thermocouple delivers dependable performance for critical temperature monitoring.

Variant Details

• Size: 2m
