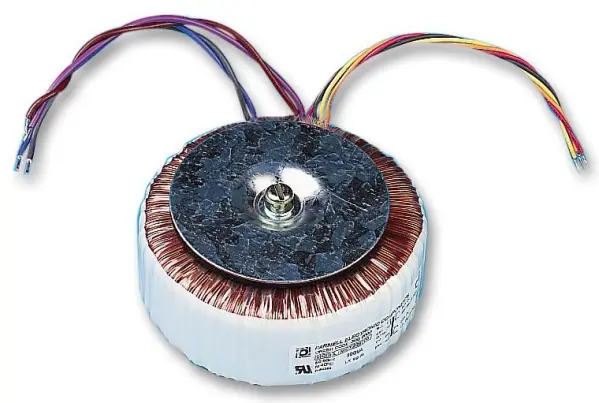

MULTICOMP PRO MCTA Series Toroidal Transformer - 15V

The MULTICOMP PRO MCTA Series of toroidal transformers delivers dependable and flexible power management for a variety of electronic and industrial applications. Engineered for quality and versatility, this transformer series features a compact, low-profile toroidal design that offers superior efficiency and reduced electromagnetic interference (EMI) compared to traditional laminated core types, resulting in quieter operation and less stray magnetic field.

Key to its design are the dual primary and dual secondary windings. The dual primary windings can be connected in series or parallel, allowing for compatibility with different mains supply voltages (115V or 230V). Similarly, the secondary windings can be configured in series for higher voltage output, in parallel for increased current capacity, or used independently for separate circuits, providing exceptional design flexibility. Each unit undergoes 100% electrical and flash testing to ensure reliability and safety before dispatch.

Constructed for ease of installation and durability, the transformers feature flexible, enamel-coated flying leads. These leads can be trimmed to any required length without the need for stripping the enamel insulation, simplifying wiring and reducing installation time. The primary lead-out is double insulated for enhanced safety. Each transformer is supplied with a comprehensive mounting kit, including a dished mounting plate, two foam pads, and a screw, nut, and washer for secure panel mounting.

Ideal Applications:

• Industrial control systems and machinery.
• Audio amplifiers and high-fidelity equipment.
• Laboratory and test bench power supplies.
• Lighting systems and low-voltage applications.
• General electronic projects requiring stable, isolated AC power.

With power ratings spanning from 15VA to 1000VA and secondary voltage options from 2 x 6VAC to 2 x 55VAC, the MCTA series offers a solution for

Variant Details

• Size: 15V
