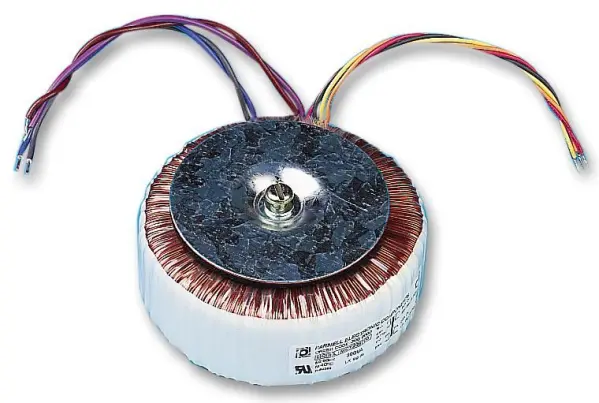

MULTICOMP PRO Toroidal Transformer 80VA - 55V

The MULTICOMP PRO Toroidal Transformer (80VA) is a versatile, high-efficiency power component, engineered for reliability and flexibility. Designed with a classic toroidal core, it offers superior performance with reduced magnetic interference and lower audible hum compared to traditional laminated transformers. Its dual-primary and dual-secondary windings provide exceptional configuration options to suit a wide range of power management applications.

This transformer features double-insulated primary lead-outs, enhancing safety and durability. With a robust 80VA power rating, it delivers stable power conversion with a typical efficiency of 89%. It is designed to operate at a rated ambient temperature of 40°C, ensuring consistent performance in demanding environments. The unit complies with stringent international safety standards, including EN61558-1/A1 and is UL recognised under family approvals for UL1411, UL60601-1, and UL60065-1, making it suitable for professional and industrial use.

Key Features & Specifications

• High Power Rating: 80VA capacity for demanding applications.
• Flexible Windings: Dual primary windings for connection in series or parallel, and dual secondary windings that can be connected in series, parallel, or used independently.
• Wide Input Range: Accepts input voltages of 115V or 230V (±10%), 50/60Hz.
• Enhanced Safety: Features double-insulated primary lead-outs.
• High Efficiency: Typical operational efficiency of 89%.
• Robust Construction: Unpotted toroid centre with flying leads for easy integration.
• Complete Mounting Kit: Supplied with a 70mm dished mounting plate, two 70mm neoprene mounting pads, and an M6 x 50mm screw, nut, and washer for secure panel mounting.

This general-purpose toroidal transformer is an ideal solution for designers and engineers seeking a reliable, quiet, and efficient power supply core.

Variant Details

• Size: 55V
