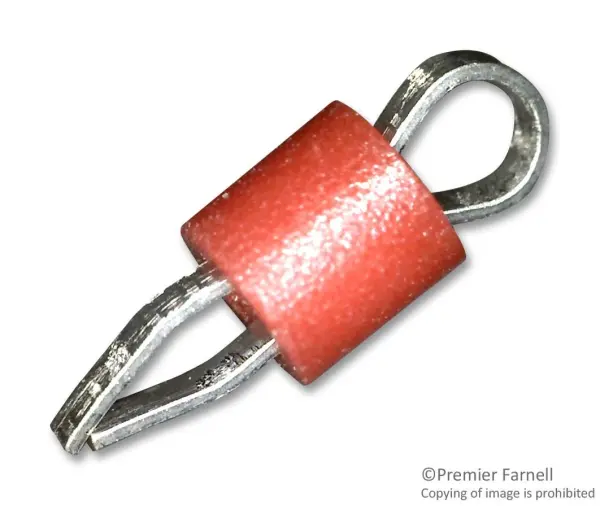

VERO PCB Test Terminal Bead Raised Loop, 100 Pack - Red 1.32mm

The VERO PCB Test Terminal Bead Raised Loop provides a reliable and durable connection point for attaching test leads, scopes, and probes to printed circuit boards. Its innovative compliant pin design allows for easy insertion without damaging the delicate plating of the PCB hole, ensuring a secure and damage-free installation. Once inserted, the terminal remains firmly in place, even when the board is inverted during the soldering process, offering exceptional convenience and stability for assembly and testing.

This terminal features a high-quality boro silicate sintered glass bead insulator, which offers excellent electrical insulation and thermal stability. The glass bead has a recommended maximum working temperature of 475°C, comfortably exceeding all current standard soldering temperature profile requirements, making it suitable for a wide range of manufacturing processes.

The conductive loop is crafted from phosphor bronze wire, conforming to the BS2873 standard, and is finished with a bright electroplated tin coating (3 to 5μ). This combination ensures optimal conductivity, corrosion resistance, and reliable solderability. The through-hole mounting design and precise pin specifications make it compatible with standard board thicknesses.

Supplied in a practical 100-pack, these terminals are an essential component for any electronics workshop, laboratory, or production line involved in prototyping, debugging, and quality assurance. Their robust construction and dependable performance make them ideal for creating permanent or semi-permanent test points on a vast array of electronic assemblies.

Variant Details

• Size: 1.32mm
