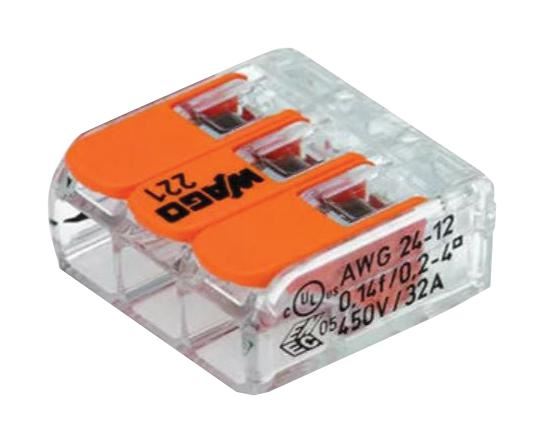

WAGO 3-Pole Terminal Block, Lever Lock, 4mm², 450V, 32A

The WAGO 3-Pole Terminal Block with Lever Lock is a revolutionary solution for electrical installations, offering fast, reliable connections for solid, stranded, and fine-stranded wires. It significantly reduces space requirements in junction boxes, being 40% smaller than the WAGO 222 series. The transparent housing ensures easy visual inspection for correct wiring, while test ports at the front and rear enhance safety and functionality.

Key Features

• Compact Design: 40% smaller than WAGO 222 series, saving valuable space in junction boxes.
• Versatile Wiring: Supports solid, stranded, and fine-stranded conductors (0.2-4mm² for solid/stranded, 0.14-4mm² for fine-stranded).
• High Performance: Rated for 32A current and 450V voltage, ensuring robust electrical connections.
• User-Friendly: Clear, orange levers and side-entry wiring simplify installation.
• Transparency for Inspection: Allows easy visual verification of connections.

Applications

This terminal block is ideal for a wide range of applications, including industrial settings, communications, networking, lighting, security, signalling, and HVAC systems. Its high current and voltage ratings make it suitable for demanding environments.

Specifications

• Dimensions: 18.7mm (W) x 8.3mm (H) x 18.6mm (D)
• Ambient Temperature: Up to 85°C
• Color: Clear with orange levers
• Wire Sizes: 24AWG to 12AWG
• Conductors: Solid & stranded (0.2-4mm²), Fine-stranded (0.14-4mm²)
• Connection Method: Push-in lock
• Series: WAGO 221 Series
