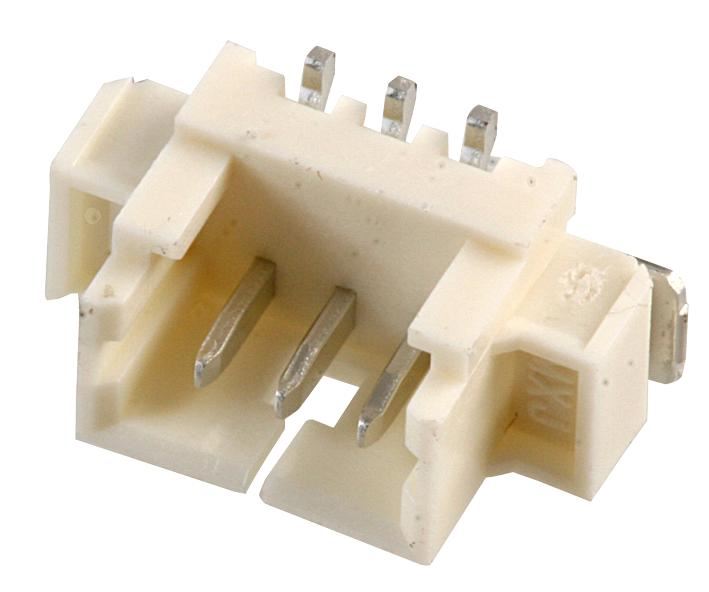

Molex PicoBlade 3-Way SMT Header, 1.25mm Pitch
3-way vertical SMT header with 1.25mm pitch from Molex PicoBlade series - tin-plated brass contacts for reliable connections.
The Molex PicoBlade 53398 Series is a 1.25mm pitch, 3-way SMT header designed for reliable connections in compact electronic applications. Engineered with precise tolerances, this vertical mount header ensures secure mating and optimal signal integrity across various PCB designs.
Key features include friction lock terminals for stable connections, polarised mating geometry to prevent incorrect insertion, and solder tabs for surface mounting convenience. The header comes with vacuum caps for protection during handling and is supplied in embossed tape packaging for automated assembly processes.
Constructed with tin-plated brass contacts, this connector combines durability with excellent electrical conductivity. The surface mount design makes it suitable for high-density board layouts where space is at a premium.
Technical Specifications:
- Pitch: 1.25mm
- Orientation: Vertical
- Rows: Single row
- Contacts: 3
- Termination: Surface Mount (SMT)
- Contact Material: Brass
- Plating: Tin
- Series: PicoBlade 53398
Ideal for applications requiring miniaturised interconnects with robust performance in challenging environments.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Compact electronic devices
- High-density PCB designs
- Surface mount applications
- Miniaturised interconnects
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Pitch Spacing: 1.25mm
- No. of Rows: 1
- No. of Contacts: 3
- Termination Type: Surface Mount (SMT)
- Contact Material: Brass
- Contact Plating: Tin
- Product Range: PicoBlade 53398
- Features: Friction Lock
- Features: Polarized Mating Geometry
- Features: Solder Tabs
- Packaging: Embossed Tape
- Included: Vacuum Caps
- Weight: 900g (estimated reel weight)
