NEUTRIK 3-Pin XLR Panel Socket, Silver Plated Contacts
Durable NEUTRIK 3-pin XLR panel socket with silver-plated contacts, IP40-rated for professional audio & AV applications.

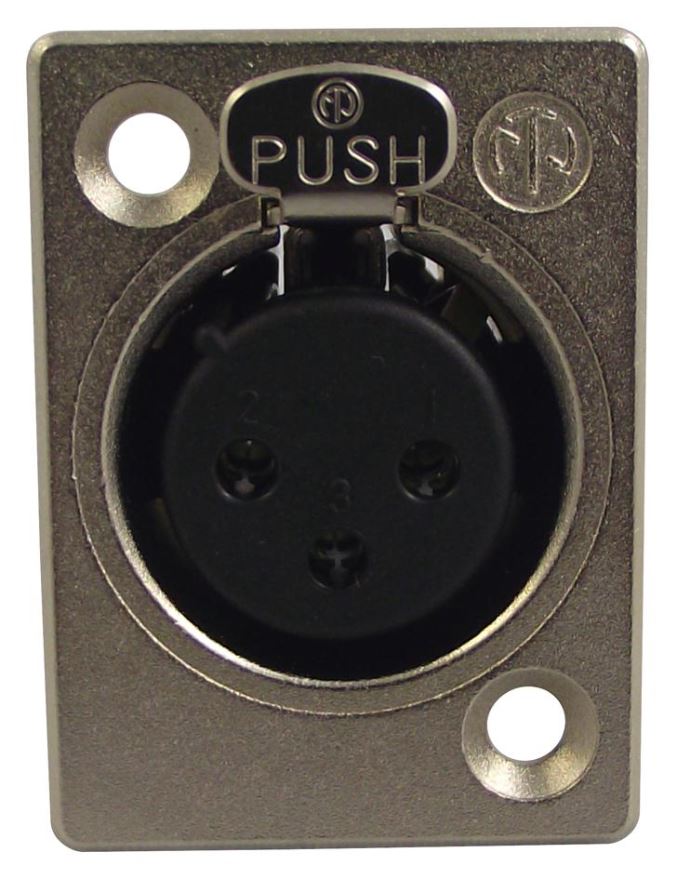

The NEUTRIK NC3FP-1 is a premium 3-pole female XLR panel mount connector, designed for professional audio and consumer electronics applications. This chassis-mounted socket features a traditional metal design with large solder cups for effortless hard wiring, ensuring reliable and robust connections.
Crafted with a polyamide (PA 6.6 30% GR) insert and bronze (CuSn6) contacts coated in silver, this connector guarantees excellent conductivity and longevity. The zinc die-cast (ZnAl4Cu1) shell with nickel plating and steel Ck67 locking element provides durability and secure mating, making it ideal for high-performance environments.
Key specifications include a 1.5KVDC dielectric strength, 16A rated current per contact, and a voltage rating under 50V. With a mating cycle lifespan exceeding 1000 insertions, this connector adheres to IEC 61076-2-103 standards and boasts an IP40 protection rating, making it suitable for a wide range of industrial and audio applications. The flame-retardant (UL 94 HB) material ensures safety, while the operating temperature range (-30°C to +80°C) guarantees performance in varied conditions.
Compatible with Switchcraft DM, DF, and Cannon XLB231/XLB232 series connectors, this NEUTRIK socket is a versatile choice for front-panel installations in audio mixers, amplifiers, and professional AV equipment.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Professional Audio Equipment
- Consumer Electronics
- Mixers & Amplifiers
- AV Rack Panels
- No. of Contacts: 3
- Gender: Socket (Female)
- Mounting Type: Panel Mount
- Insert Material: Polyamide (PA 6.6 30% GR)
- Contact Material: Bronze (CuSn6) with Silver Plating
- Shell Material: Zinc Die-Cast (ZnAl4Cu1) with Nickel Plating
- Locking Element: Steel Ck67
- Dielectric Strength: 1.5KVDC
- Rated Current: 16A per Contact
- Rated Voltage: <50V
- Mating Cycles: >1000
- Protection Class: IP40
- Flammability Rating: UL 94 HB
- Standard Compliance: IEC 61076-2-103
- Temperature Range: -30°C to +80°C
- Weight: 30g
