NEUTRIK 5-Pin XLR Panel Socket, Silver-Plated, Solder Contact
Premium 5-pin XLR panel socket by NEUTRIK—silver-plated, solder contact wiring, UL/IEC certified. Ideal for pro audio & industrial use.

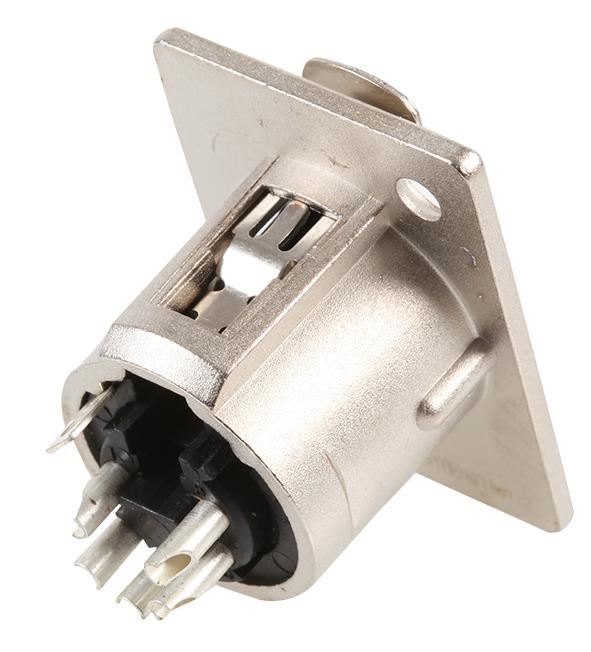

The NEUTRIK NC5FP-1 is a high-quality 5-pole female XLR panel mount connector, designed for professional audio and electrical applications. With a durable polyamide insert and brass contacts featuring silver plating, it ensures excellent conductivity and long-term reliability.
This compact XLR chassis connector is one of the smallest hard-wiring receptacles available, yet it offers large solder cups for easy and secure connections. Its zinc die-cast shell with nickel plating provides robust protection, while the steel locking element ensures a secure mating connection.
Key Benefits:
- Compatibility: Works with Switchcraft DM, DF; Cannon XLB231, XLB232 connectors.
- Durability: Rated for > 1000 mating cycles, ensuring long service life.
- Safety-Compliant: Meets UL 94 HB flammability and IEC 61076-2-103 standards.
- High Performance: Dielectric strength of 1.5KVDC and rated current of 7.5A per contact.
- Versatile Use: Suitable for industrial, audio, and broadcast equipment thanks to its temperature resistance (-30°C to +80°C) and IP40 protection.
Ideal for panel mounting in professional audio setups and electrical enclosures, this Neutrik 5-pin XLR socket is built to last.
- Professional audio equipment
- Broadcast and studio gear
- Live sound systems
- Industrial electrical panels
- No. of Contacts: 5
- Gender: Socket
- Connector Mounting: Panel Mount
- Contact Plating: Silver Plated
- Insert Material: Polyamide (PA 6.6 30% GR)
- Contact Material: Brass (CuZn39Pb3), Silver-Plated
- Shell Material: Zinc Die-Cast (ZnAl4Cu1), Nickel-Plated
- Locking Element: Steel Ck67
- Dielectric Strength: 1.5KVDC
- Rated Current: 7.5A per contact (<50V)
- Mating Cycles: >1000
- Max Wire Size: 18AWG (1.0mm²)
- Protection Class: IP40
- Temperature Range: -30°C to +80°C
- Flammability Rating: UL 94 HB
- Compliance: IEC 61076-2-103
