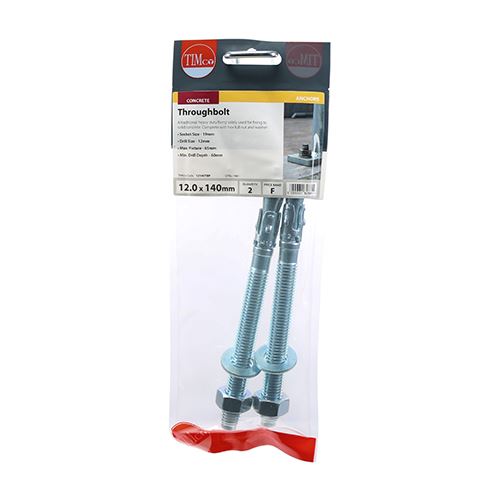

Timco M12 x 140mm Zinc Throughbolts (2 Pack)
Grade 5.8 carbon steel throughbolts with zinc plating for concrete anchoring applications. Pack of two.
The Timco Throughbolts are high-quality, torque-controlled fixings designed for robust anchoring in concrete applications. Their zinc-plated finish offers excellent corrosion resistance, while the cold-formed carbon steel construction (grade 5.8) ensures strength and durability.
Key features include a chamfered head design to protect threads during installation and a special expansion clip for rapid, secure fixing. These throughbolts are ideal for heavy-duty applications where reliable anchoring is essential.
Installation Note: If a torque wrench isn't available, simply tighten the nut 3 to 4 full turns from finger tight for proper installation.
Technical Specifications
- Thread Diameter: M12
- Length: 140mm
- Nut Socket Size: 19mm
- Material: Carbon Steel (Grade 5.8)
- Finish: Zinc Plated (3-5 microns)
- Drill Hole Diameter: 12.0mm
- Fixture Hole Diameter: 14.0mm
- Edge Distance: 75mm
- Max Fixture Thickness: 65mm
- Min Drill Hole Depth: 60mm
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Concrete anchoring applications
- Heavy-duty structural fixings
- Industrial construction projects
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Thread Dia. mm: M12
- Length mm: 140
- Nut Socket Size mm: 19
- Material: Carbon Steel (Grade 5.8)
- Finish: Zinc (3-5 microns)
- Drill Hole Dia. mm: 12.0
- Fixture Hole Diameter mm: 14.0
- Edge Distance mm: 75
- Max Fixture Thickness mm: 65
- Min Drill Hole Depth mm: 60
- Weight: 250g
- Special Feature: Chamfered head design
- Special Feature: Expansion clip for rapid installation
