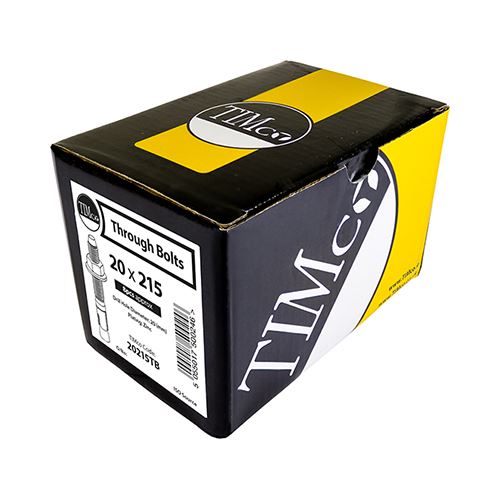

Timco Throughbolts, Zinc Plated, M20 x 215mm (8 Pack)
Timco zinc-plated M20 throughbolts (215mm) for concrete anchoring. Includes nuts & washers. Grade 5.8 carbon steel construction.
The Timco Throughbolts provide a high-strength, torque-controlled through fixing solution for anchoring applications in solid materials like concrete. These zinc-plated throughbolts come complete with a hex full nut and washer for secure fastening.
Key features include a chamfered head design to protect the thread during installation and a special expansion clip for rapid, efficient fitting. Manufactured from cold-formed carbon steel (grade 5.8) with a zinc plating and passivation (3-5 microns), these bolts offer excellent corrosion resistance and durability.
Installation Tip: If no torque wrench is available, simply tighten the nut 3 to 4 full turns from finger tight to achieve optimal clamping force.
Technical Specifications:
- Thread Diameter: M20
- Length: 215mm
- Nut Socket Size: 30mm
- Material: Carbon Steel (Grade 5.8)
- Finish: Zinc Plated and Passivated
- Drill Hole Diameter: 20.0mm
- Fixture Hole Diameter: 22.0mm
- Edge Distance: 120mm
- Maximum Fixture Thickness: 85mm
- Minimum Drill Hole Depth: 90mm
- Concrete anchoring applications
- Structural fixings
- Heavy-duty fastening
- Construction projects
- Thread Diameter: M20
- Length: 215mm
- Nut Socket Size: 30mm
- Material: Carbon Steel (Grade 5.8)
- Finish: Zinc Plated and Passivated (3-5 microns)
- Drill Hole Diameter: 20.0mm
- Fixture Hole Diameter: 22.0mm
- Edge Distance: 120mm
- Maximum Fixture Thickness: 85mm
- Minimum Drill Hole Depth: 90mm
- Weight: 4104g
- Pack Quantity: 8 pieces
Always follow local regulations and product guidance. Use appropriate PPE.
