AMP TE Connectivity Female Crimp Terminal, 6.35mm, 22-18 AWG, 25 Pack
AMP TE Connectivity female crimp terminal, 6.35mm, 22-18 AWG, tin-plated brass, perfect for industrial applications.

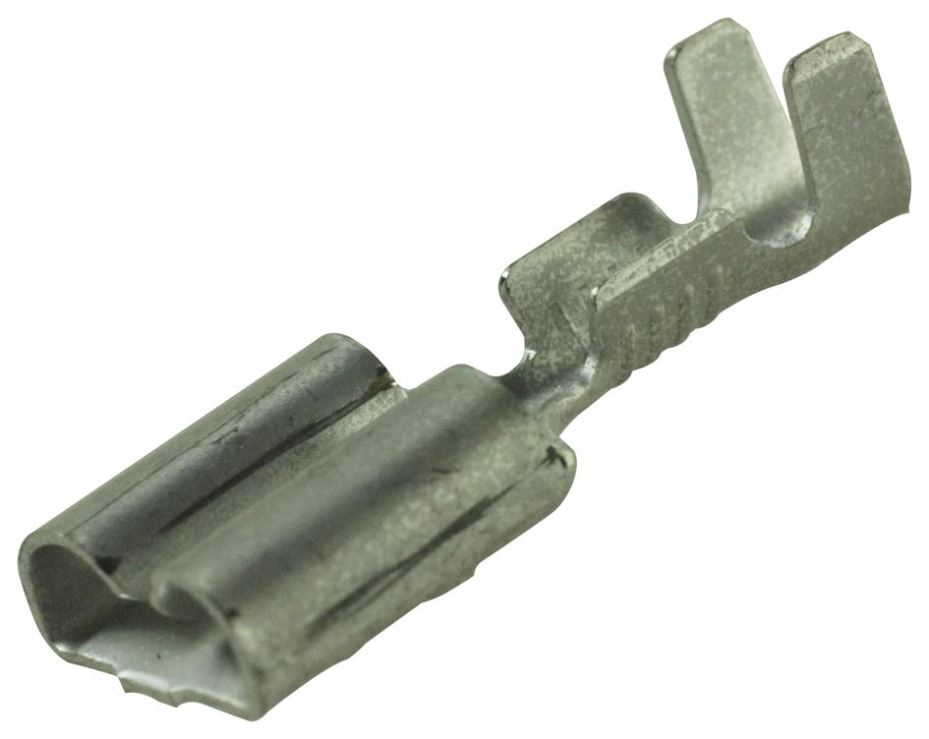

The AMP TE Connectivity Female Crimp Terminal (60838-1) is a high-quality socket terminal designed for reliable electrical connections. Featuring a tin-plated brass contact, it ensures excellent conductivity and corrosion resistance.
This terminal supports a wire cross-section of 0.33 to 0.823mm² (22-18 AWG) with a straight orientation, making it ideal for various wiring applications. The quick disconnect type allows for easy installation and removal, while the 6.35mm x 0.81mm tab size ensures secure fastening.
Key Features:
- Tin-plated brass contact for superior conductivity
- Quick disconnect type for easy use
- F-crimp type provides secure wire retention
- Locking lance for added mating retention
Applications:
This terminal is commonly used in industrial settings where reliable and secure electrical connections are essential.
Specifications:
- Product Range: FASTON 250
- Terminal Type: Female Quick Disconnect
- Wire Size: 22-18 AWG
- Conductor Area CSA: 0.823mm²
- Insulator Material: Uninsulated
- Terminal Material: Brass
- Pack Size: 25 terminals
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
Technical Specifications
- Industrial electrical applications
- Secure wiring connections
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Product Range: FASTON 250
- Terminal Type: Female Quick Disconnect
- Tab Size - Metric: 6.35mm x 0.81mm
- Tab Size - Imperial: 0.25'' x 0.032''
- Wire Size AWG Min: 22AWG
- Wire Size AWG Max: 18AWG
- Conductor Area CSA: 0.823mm²
- Insulator Material: Uninsulated
- Terminal Material: Brass
- Wire Cross-Section: 0.33 - 0.823mm²
- Weight: 20g
