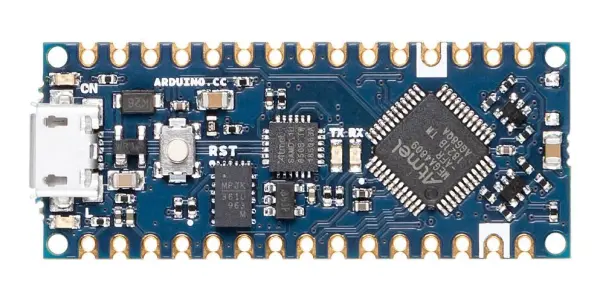

Arduino Nano Every ATmega4809 Development Board

The Arduino Nano Every is a compact, 5V-compatible development board designed for a wide range of projects where small size and ease of use are essential. Its tiny footprint and cost-effective design make it suitable for wearable technology, low-cost robotics, electronic musical instruments, and controlling smaller parts of larger systems.

Building on the classic Nano form factor, this board features the powerful ATmega4809 microcontroller (8-bit AVR core), offering significantly more memory than the Arduino Uno: 50% more program memory and 200% more RAM. This extra headroom allows you to run larger programs and handle more complex variables with ease.

The board operates at 5V with a clock speed of 20MHz and provides 20mA DC current per I/O pin. It includes 48KB of CPU flash memory, 6KB of SRAM, and 256 bytes of EEPROM. The Nano Every measures 45mm in length and 18mm in width, making it ideal for embedding in space-constrained designs. The kit includes the Nano Every Development Board with the ATmega4809 chip.

This evolution of the beloved Nano board delivers superior performance while maintaining compatibility and familiarity for makers, educators, and professionals. Whether you are prototyping or building a final product, the Nano Every provides the processing power and flexibility you need in a small package.

Key Specifications:

• Microcontroller: ATmega4809 (AVR, 8-bit)
• Operating Voltage: 5V
• Clock Speed: 20MHz
• Flash Memory: 48KB
• SRAM: 6KB
• EEPROM: 256 bytes
• DC Current per I/O Pin: 20mA
• Dimensions: 45mm (L) x 18mm (W)
• Manufacturer: Arduino (Microchip silicon)

With its enhanced capabilities and reduced cost, the Arduino Nano Every is an excellent choice for modern embedded projects that need more power in a smaller footprint.
