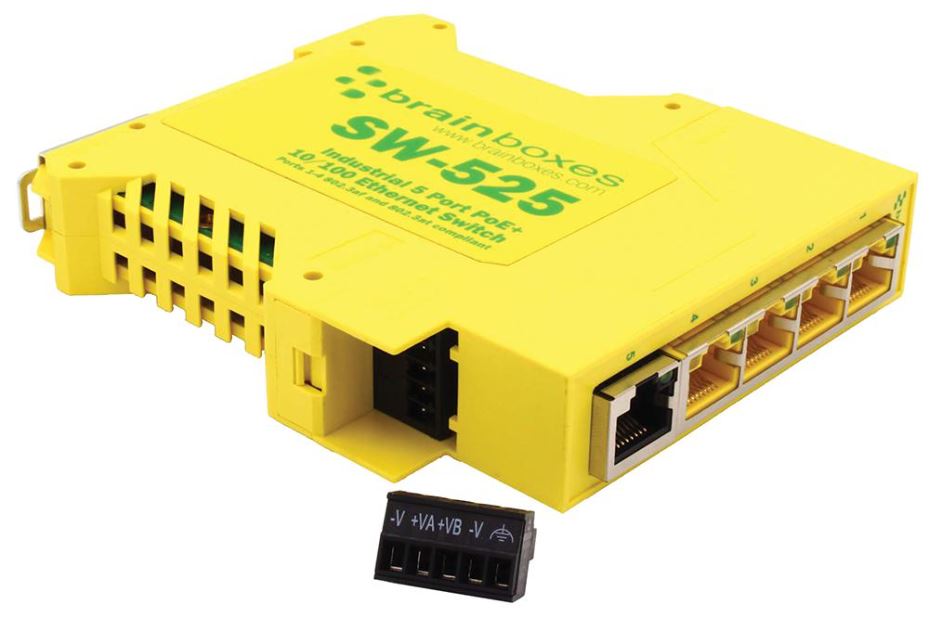

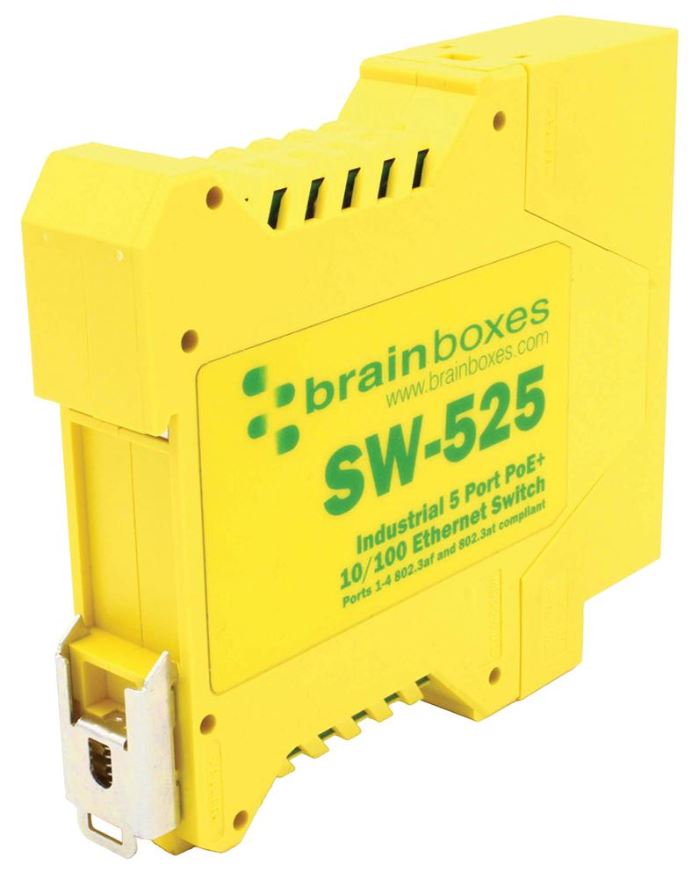

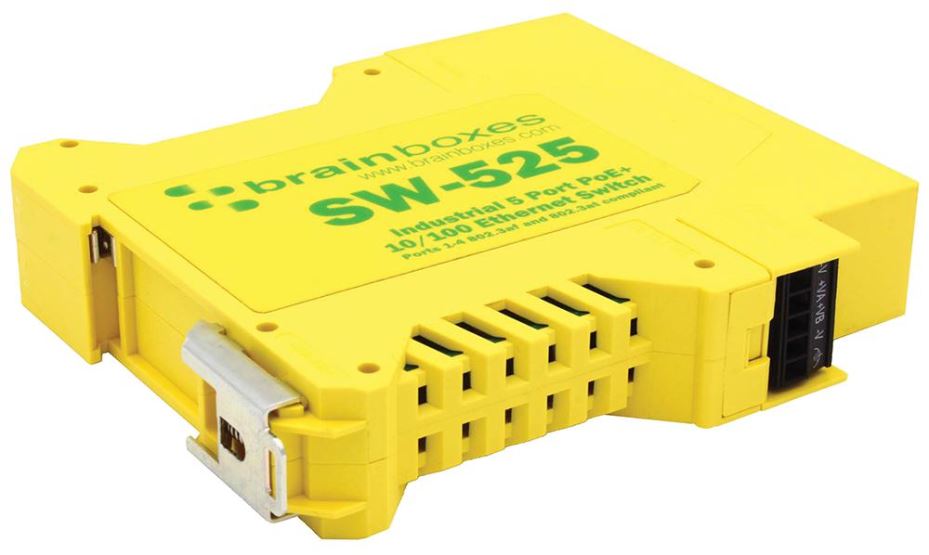

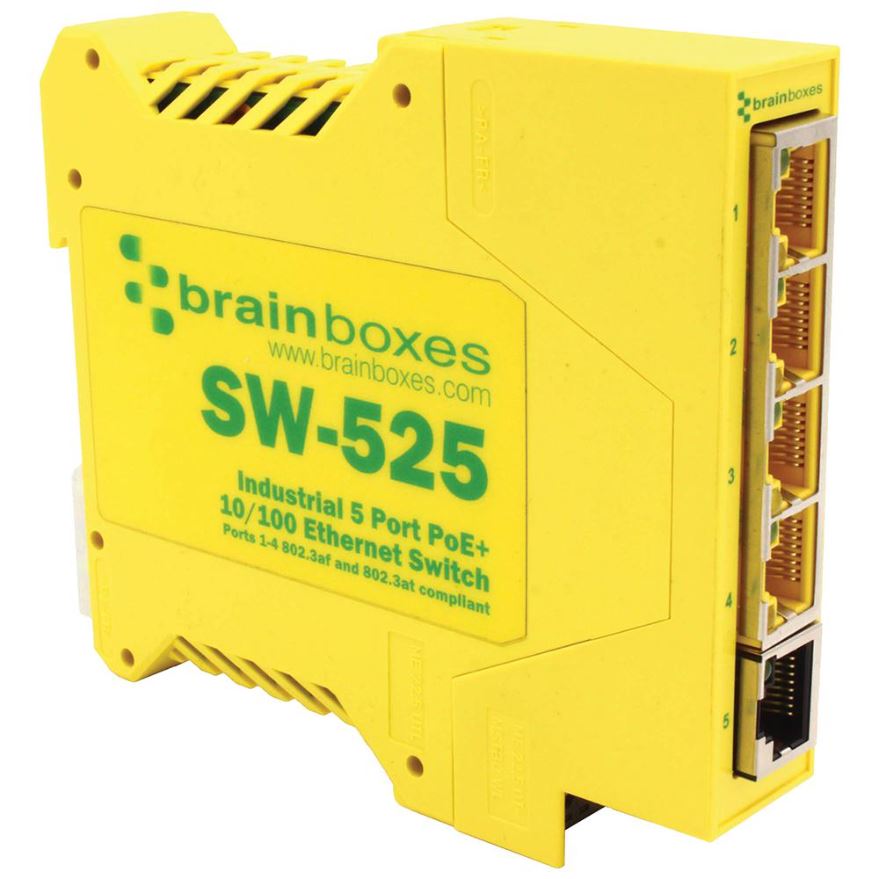

BRAINBOXES 5-Port Industrial PoE+ Switch, DIN Rail, 90W
Industrial 5-port PoE+ switch with 90W power budget, DIN rail mount, and wide temperature operation (-40°C to +70°C).
The BRAINBOXES 5-Port Industrial Unmanaged PoE+ Fast Ethernet Switch delivers reliable high-speed networking and Power over Ethernet (PoE) in demanding industrial environments. Featuring a compact DIN-rail mountable design, it provides power and data connectivity to CCTV cameras, wireless access points, and other PoE-enabled devices.
Key Features
- PoE+ Capability: Ports 1-4 offer 30W per port with a total 90W PoE budget
- Industrial Durability: Operates in extreme temperatures from -40°C to +70°C
- Enhanced Protection: Magnetically isolated Ethernet ports and IP20-rated polyamide casing
- Reliable Power: Dual redundant power input (44-57V DC) with optimised consumption
- Easy Installation: Removable screw terminal block and integrated DIN rail mounting with ground
Specifications
Switch and user guide included.
- Industrial networking
- CCTV camera installations
- Wireless access point power
- PoE device connectivity
- No. of Ports: 5 (RJ45)
- PoE Ports: Ports 1-4 (30W per port, 90W total budget)
- Network Speeds: 10Mbps, 100Mbps
- Operating Temperature: -40°C to +70°C
- Input Voltage: 44-57V DC (dual redundant)
- Case Material: IP20-rated polyamide

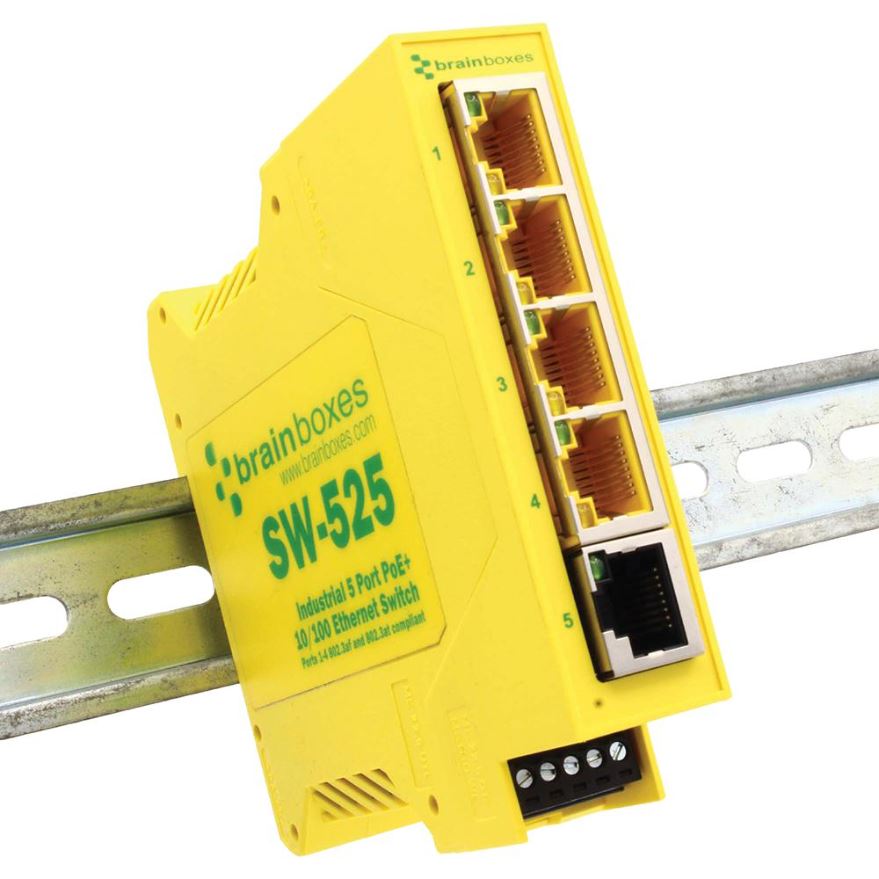

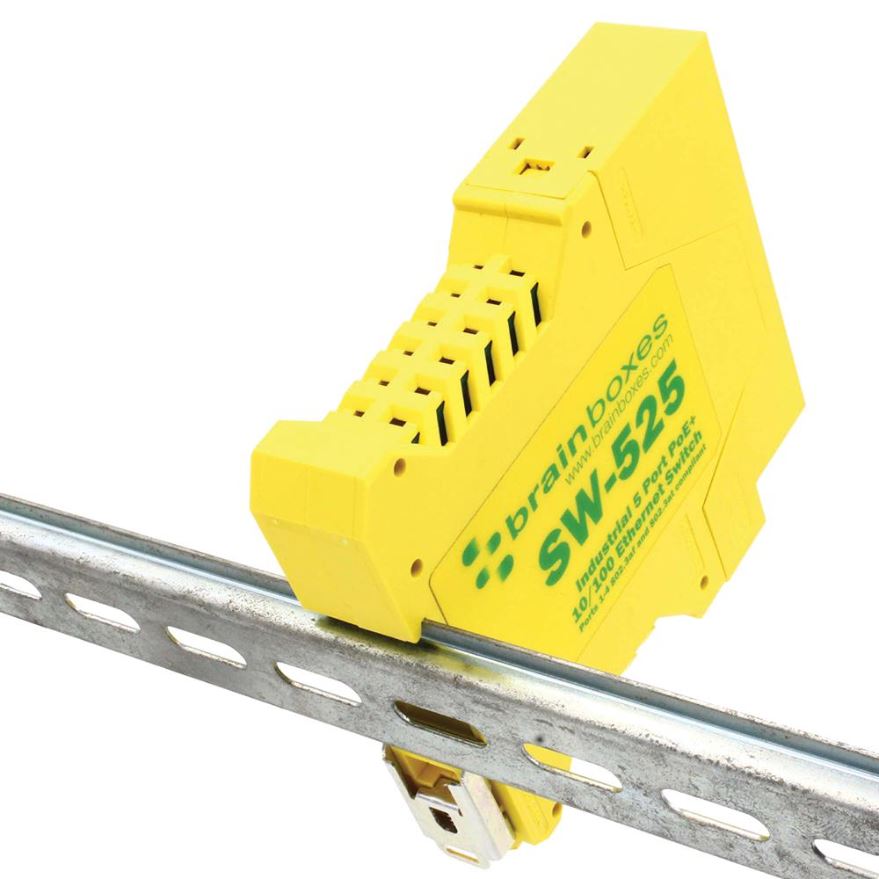

- Mounting: DIN rail
- Dimensions: 99mm x 23mm x 115mm (HxWxD)
- Weight: 230g
- Features: Auto MDI/MDI-X, magnetically isolated ports
