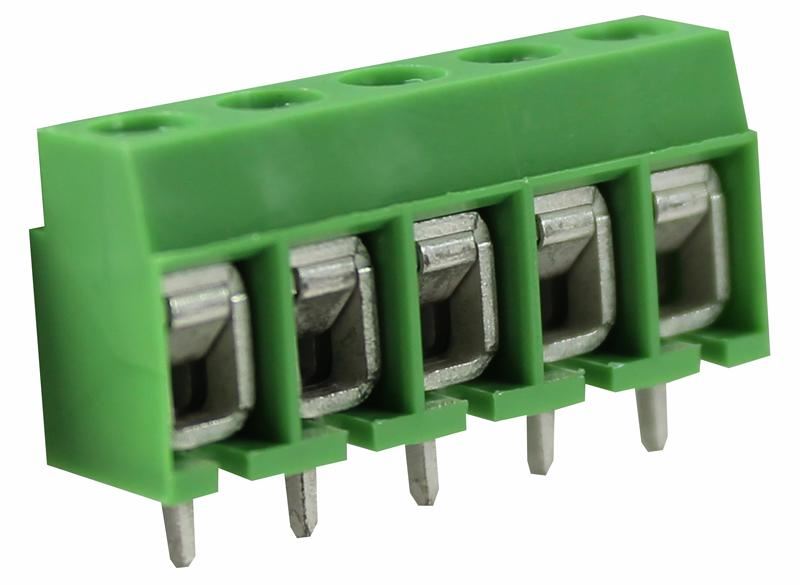

CAMDENBOSS PCB Terminal Block, Low Profile, 5mm, 5 Way
Low profile 5mm pitch terminal block, flame retardant, UL/VDE certified. Ideal for PCBs & industrial wiring.
The CAMDENBOSS PCB Terminal Block is a low profile, 5mm pitch, 5-way terminal block designed for effective and reliable electrical connections. With its end stackable design, this terminal block allows for easy expansion in applications requiring multiple connections.
Constructed from green UL94-V0 flame retardant PA, it offers excellent flame resistance, ensuring safety in electrical installations. The wire protector terminals and captive screws enhance secure wire clamping, while the guided pin alignment simplifies installation. The anti-solder wicking terminal prevents solder flow interference, maintaining consistent performance.
Performance & Compliance
Rated for 24A/250V, it suits a variety of electrical applications. The dielectric strength of 2kV ensures reliable insulation, while the high working temperature of 110°C makes it suitable for demanding environments. It is UL recognised and VDE approved, confirming its adherence to international safety standards.
Technical Specifications
- No. of Contacts: 5
- Pitch Spacing: 5mm
- Connector Type: Terminal Block
- Connector Mounting: PCB Mount
- Wire Size Range: 12AWG (max) to 30AWG (min)
- Contact Material: Beryllium Copper & Phosphor Bronze
- Contact Plating: Nickel Plated
- PCB Hole Size: 1.3mm
Ideal for industrial and commercial electrical applications, the CAMDENBOSS PCB Terminal Block provides durability, safety, and ease of use.
- PCB electrical connections
- Industrial control panels
- Commercial wiring applications
- Automation systems
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Construction: UL94-V0 flame retardant PA (green)
- Rating: 24A/250V
- Dielectric Strength: 2kV
- Working Temperature: 110°C
- PCB Hole Size: 1.3mm
- No. of Contacts: 5
- Pitch Spacing: 5mm
- Connector Type: Terminal Block
- Connector Mounting: PCB Mount
- Wire Size Range: 12AWG (max) to 30AWG (min)
- Contact Plating: Nickel Plated
- Contact Material: Beryllium Copper & Phosphor Bronze
- Product Range: CTB
- Certifications: UL Recognised, VDE Approved
- Weight: 900g
Always follow local regulations and product guidance.
