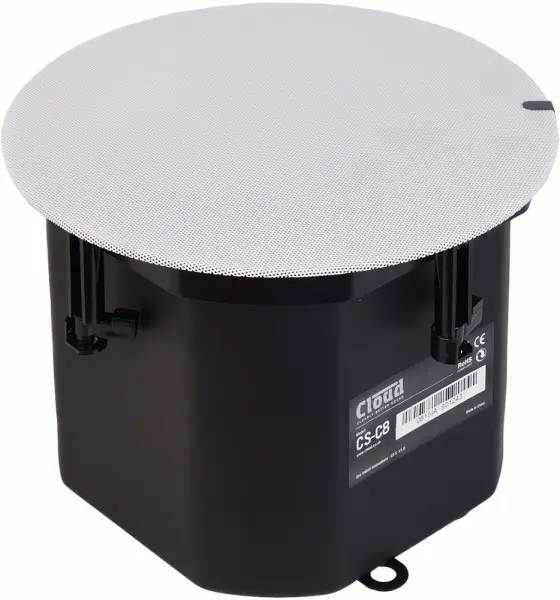

Cloud CS-C8 8-Inch 100V Ceiling Speaker with Steel Backcan 64W

The Cloud CS-C8 8-Inch 100V Ceiling Speaker with Steel Backcan 64W is an 8-inch coaxial two-way in-ceiling loudspeaker engineered for professional commercial audio installations, with a 64W power tap for 100V line systems and a deep steel backcan.

Overview

The CS-C8 combines a treated paper woofer with a rubber surround and a 1-inch silk dome tweeter with a phase plug. These components provide high sensitivity, a smooth frequency response and excellent off-axis sound dispersion, supporting consistent audio coverage throughout the space. The design is intended to deliver exceptional speech intelligibility and rich musical performance.

Key Features

• Deep steel backcan construction
• ZeroEdge magnetic round grille in white for a flush, discreet finish
• Removable logos for a completely discreet installation
• Accessible switch for selecting high or low impedance settings
• Multiple power taps for 100V and 70V line systems

Specifications

• Driver: 8-inch coaxial two-way design
• Power Output @ 16 Ohm: 75W
• Frequency Response: 86Hz – 20kHz
• Nominal SPL: 92dB @ 1m
• Maximum SPL: 111dB @ 1m
• Cut-out Diameter: 271 mm
• Mounting Depth: 209 mm
• Input Connector: 4-pin Euro block

Applications

Designed for commercial environments and multi-zone line systems, the CS-C8 is suited to installations where a clean aesthetic is paramount. Designed in the USA to complement the Cloud range of amplifiers, it offers installer-friendly features and is tuned for seamless integration with compatible systems. Its 100V and 70V compatibility with selectable power taps allows the output to be matched to the requirements of different zones.
