I-AUTOC Single Phase AC Output Solid State Zero Crossing Panel Mount DIN Rail 1 - 30A

The I-AUTOC Single Phase AC Output Solid State Zero Crossing Relay is a high-performance and reliable component designed for precise AC load switching. Engineered with a solid-state, zero-crossing design, it minimises electrical noise and inrush current, thereby extending the lifespan of connected equipment and ensuring smooth operation. This relay is an essential choice for applications demanding silent, efficient, and durable switching without the wear and tear associated with mechanical contacts.

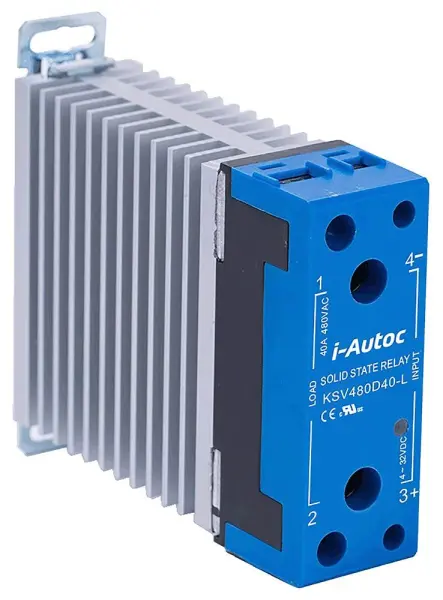

Featuring a robust construction, the relay is equipped with an integrated 30mm wide heatsink for optimal thermal management, ensuring stable performance even under continuous high-current loads. Its versatile mounting options include both 35mm DIN rail and panel mounting, offering exceptional flexibility for integration into a wide range of industrial control panels, automation systems, and machinery. A clear LED indicator provides immediate visual confirmation of the load status, facilitating quick diagnostics and system monitoring.

Key Specifications & Features

• Advanced Output: Utilises SCR (Silicon Controlled Rectifier) technology for robust and reliable AC switching.
• Zero-Crossing Switching: Ensures the relay activates at the zero-voltage point of the AC cycle, drastically reducing electromagnetic interference and stress on loads.
• High Dielectric Strength: Offers a dielectric strength of 4000Vrms, providing excellent isolation and protection against voltage spikes.
• Wide Operating Range: Capable of switching loads up to 30A within a broad AC voltage range, making it suitable for diverse industrial and commercial applications.
• Compact Design: Its space-efficient form factor allows for high-density installations in control cabinets.

This solid-state relay delivers a maintenance-free solution for controlling heaters, motors, transformers, and lighting systems,

Variant Details

• Size: 30A
