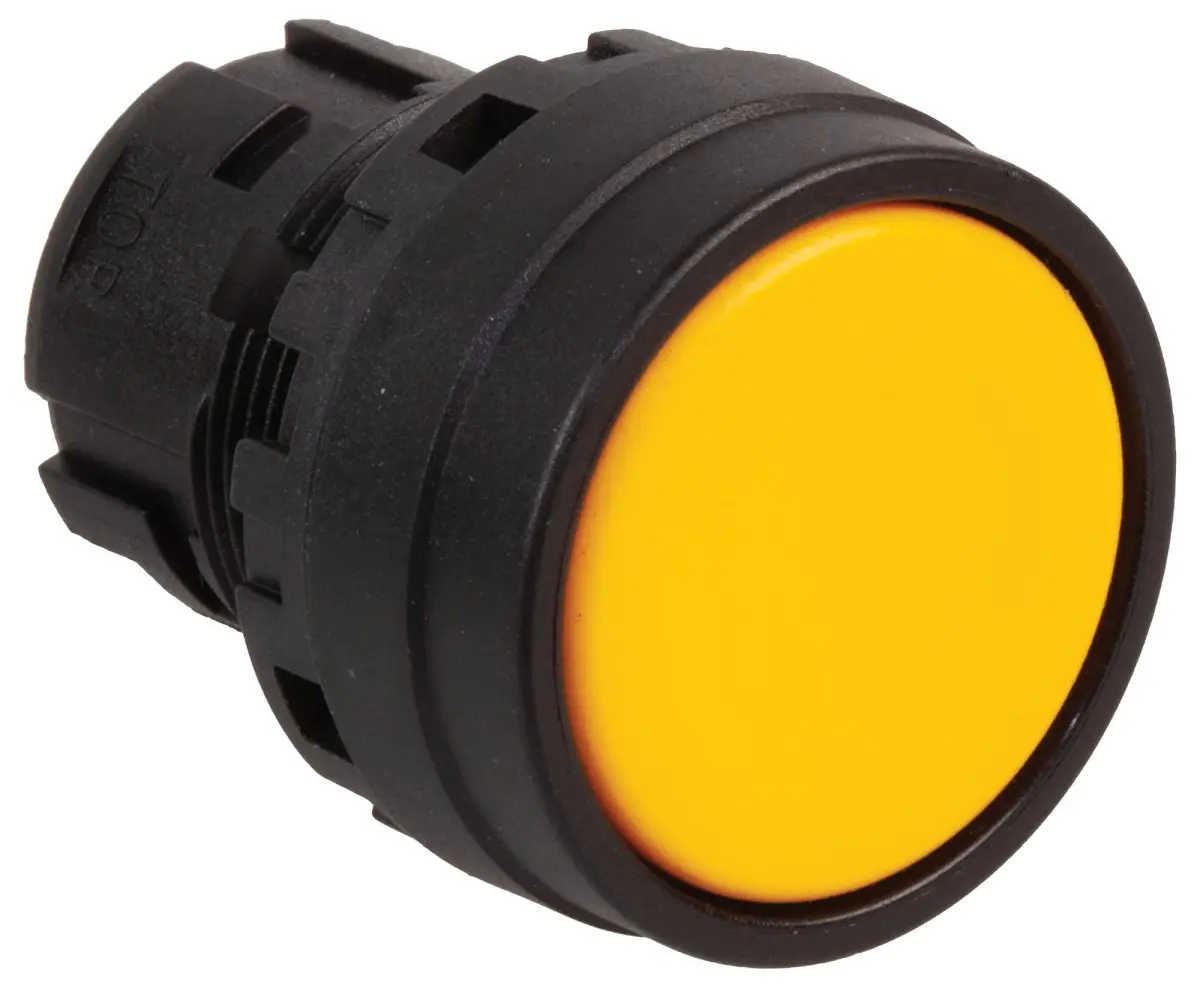

Idec Maintained Push Button Switch Actuator 22mm IP65 Yellow

The Idec Maintained Push Button Switch Actuator is a yellow 22 mm industrial actuator with IP65 protection, designed for control panels, machinery, and automated systems.

The actuator provides a familiar, ergonomic interface for operators and is designed for precise control in demanding environments. Its maintained action means the switch stays in its actuated position, either on or off, until it is manually changed, giving clear and stable state indication. It forms part of the YW Series from IDEC and is designed for use with IDEC YW Series 22 mm pushbutton switches.

Key Features

• Standardised design using the widely adopted 22 mm cutout diameter
• IP65 rating, offering protection against dust ingress and low-pressure water jets from any direction
• Maintained action that provides visual and tactile confirmation of switch state
• Designed for use with IDEC YW Series 22 mm pushbutton switches
• Built to withstand frequent use in industrial and commercial applications

Applications

Suitable for control panels, machinery, automated systems, custom control stations, safety systems, and process automation interfaces where dependable manual input is required. It is also suited to system integrators and OEM applications.

Specifications

• Colour: Yellow
• Cutout Diameter: 22 mm
• Protection Rating: IP65
• Dimensions (W x D x H): 2.2 x 0.2 x 3.3
• Weight: 10 g

Choose the Idec Maintained Push Button Switch Actuator when you need a yellow 22 mm maintained actuator with IP65 protection for panel-mounted control applications.
