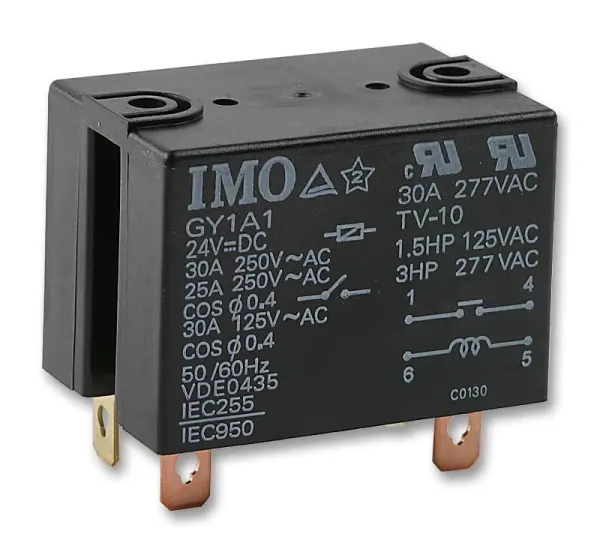

IMO Precision Controls HY Series SPNO Relay 24V DC 30A

The IMO Precision Controls HY Series High Capacity Relay is a robust and reliable panel-mount component engineered for demanding industrial applications. This single-pole, normally open (SPNO) relay is designed to handle heavy electrical loads with a substantial contact current rating of 30A and can manage loads up to 7500VA, making it suitable for controlling motors, heaters, and other high-power equipment.

A key feature is its resilience to challenging power conditions, as it is built to withstand momentary voltage drops down to 50% of its rated coil voltage. The relay incorporates a generous 3mm contact gap as standard, providing enhanced safety and reliability by helping to prevent arc flashover. It features quick-connect terminals for efficient and secure wiring, saving valuable installation time.

Constructed with high-grade materials, including silver tin oxide contacts for excellent conductivity and longevity, the relay ensures consistent performance. It is rated with Class-F insulation, offering superior thermal endurance and reliability in high-temperature environments common in industrial settings. The non-latching coil operates on a 24V DC supply with a coil resistance of 300 ohms, and the contacts are rated for 277V AC.

With its compact dimensions, this heavy-duty relay delivers powerful switching capabilities in a space-saving format, providing a dependable solution for automation panels, control cabinets, and machinery where durability and high capacity are critical.
