Kitronik Zip Tile LED Display Panel for micro:bit, 64 LEDs

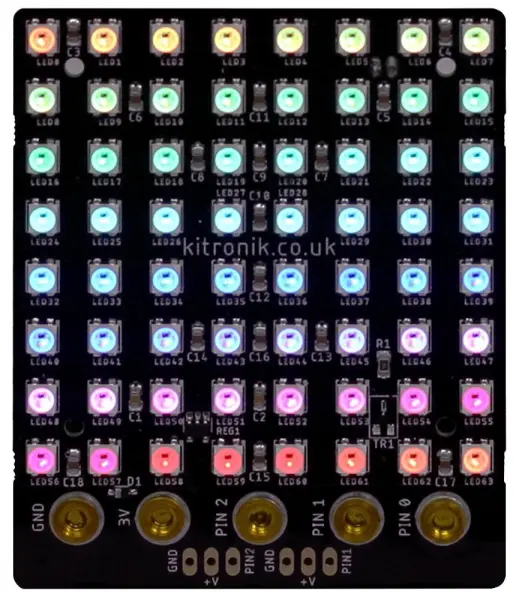

The Kitronik Zip Tile LED Display Panel for micro:bit features an 8x8 grid of 64 individually addressable Zip LEDs, offering a colourful way to create animated patterns, scrolling text and pixel art.

Key Features

• Full RGB colour control, allowing for millions of colour combinations
• Expandable design using integrated expansion points
• Fully compatible with any standard WS2812B driver code
• Dedicated JST connector that powers the LED array and the connected micro:bit
• Supplied screws and plastic spacers for mounting the micro:bit

The panel is designed for educational coding, interactive art installations and custom signage, making it suitable for both classroom use and creative projects.

Expandable Design

Multiple Tiles can be linked together through the integrated expansion points to create larger display boards, limited only by the available power supply. This modular approach suits classroom settings and maker projects where a single, large display is required.

Programming and Compatibility

The Zip LEDs are compatible with any standard WS2812B driver code, so the Tile fits into a range of development environments. Programming can be carried out in the Microsoft MakeCode Editor using block-based coding, or with Adafruit NeoPixel blocks and libraries for more advanced users.

Setup and Power

Installation is quick and tool-free. The micro:bit is mounted to the back of the Tile using the supplied screws and plastic spacers, forming a single unit. Power is supplied via a dedicated JST connector on the rear of the board, which also provides a regulated supply to the connected micro:bit.

Dimensions and Weight

The Tile measures 3.3 (width) by 1.5 (depth) by 4.3 (height) and weighs 26 g. The panel is a practical choice for any micro:bit workflow that requires a colourful, expandable LED display.
