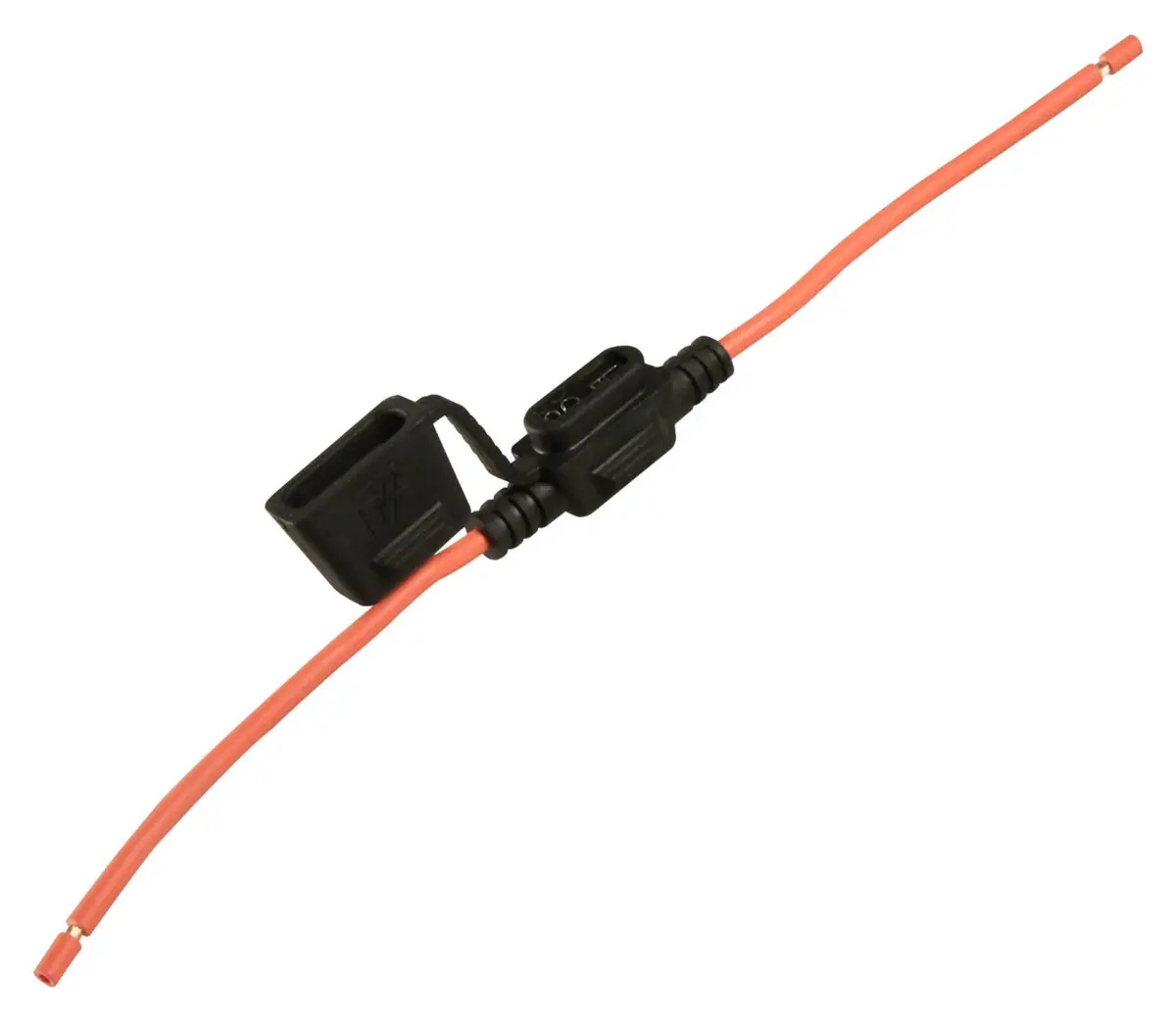

Littelfuse Inline ATO Blade Fuseholder, 32V - 30A

The Littelfuse Inline ATO Blade Fuseholder is a heavy-duty, waterproof solution designed to add reliable circuit protection to automotive and marine electrical systems. Rated for 32V and accepting standard ATO® blade fuses, this in-line holder is ideal for protecting air conditioners, blower motors, and other high-current accessories.

Engineered for durability, the fuseholder features a heat-resistant thermoplastic body with a UL 94 V-0 flammability rating, ensuring safe operation in demanding environments. The built-in cover protects the installed fuse from dust and water to IP67 standards, making it suitable for under-hood and exposed applications.

The holder comes with 30A, orange 12AWG GXL leads, providing robust, high-temperature wiring for secure connections. Tin-plated copper alloy contacts offer excellent corrosion resistance, ensuring long-term performance and conductivity.

Key Features:

• Heavy-duty, waterproof in-line fuse holder
• Accepts ATO® blade fuses
• 32V voltage rating (AC/DC)
• IP67 ingress protection with built-in cover
• Heat-resistant thermoplastic body (UL 94 V-0)
• 30A, orange 12AWG GXL leads
• Tin-plated copper alloy contacts for corrosion resistance
• Compact dimensions: 43mm (H) x 33mm (W) x 15mm (D)

This fuseholder is a practical and dependable choice for adding or upgrading circuit protection in vehicles, boats, and other 12V/24V systems.

Specifications:

• Fuse Holder Type: Automotive Blade Fuse Holder
• Fuse Current: 30A
• Fuse Size Held: ATO
• Holder Terminals: Wire Leaded
• No. of Fuses: 1
• Product Range: ATO FHAC Series
• Voltage Rating: 32V (AC/DC)
• Mounting Method: In-line
• Weight: 18.6 grams
• Dimensions (H x W x D): 43mm x 33mm x 15mm

Variant Details

• Size: 30A
