MEAN WELL AC/DC Open Frame Power Supply, Medical Approved - 15V 4.34A 65.1W

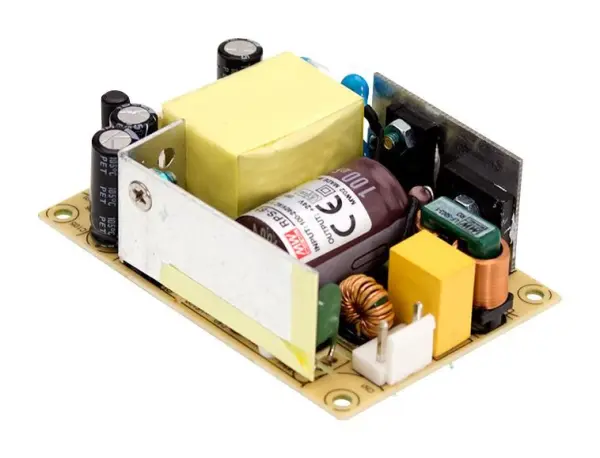

The MEAN WELL RPS-65 Series AC/DC Open Frame Power Supply is a highly reliable, medical-approved green PCB type power supply designed for demanding applications. Delivering a robust 65W power output with a high power density on a compact 3” by 2” footprint, this unit is engineered to perform where space is limited. It conforms to international medical regulations, providing 2 x MOPP (Means of Patient Protection) and EMC BS EN/EN55011 compliance, making it perfectly suited for BF rated "patient contact" medical system equipment.

Safety is paramount, with approvals according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1, alongside certifications from IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1, and CAN/CSA-C22.2 No. 60601-1:14. The design also references BS EN/EN60335-1 for broader compliance. It operates efficiently with a wide input voltage range of 80 to 264VAC, achieving up to 89% efficiency. Cooling is handled effortlessly by free air convection, and it features EMI class B compliance for class II configurations.

Key Features and Protections

• Extremely low leakage current and low no-load power consumption of less than 0.1W
• Comprehensive protection against short circuits, overload, and over voltage
• Wide working temperature range from -30°C to 70°C
• Adjustable and fixed output types available to suit various system requirements
• Compact dimensions of 76.2 x 50.8 x 24mm

Ideal for integration into sensitive medical environments, this power supply ensures stable and safe operation for critical healthcare equipment.

Variant Details

• Size: 15V 4.34A 65.1W
