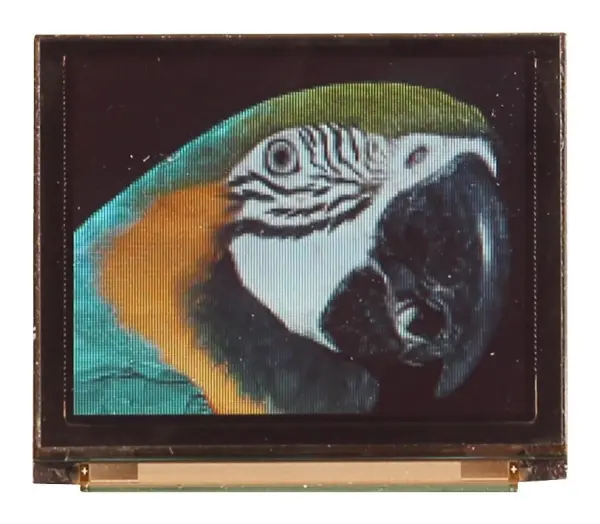

MIDAS DISPLAYS OLED Graphic Module, 160x128 RGB, 5V, I2C

The MIDAS DISPLAYS OLED Graphic Display Module delivers a vibrant 1.45” RGB full-colour display with a sharp 160 x 128 pixel resolution. Designed for clarity and performance, it features a chip-on-glass (COG) construction and the reliable SSD1333 controller, ensuring smooth and accurate image rendering for a wide range of embedded and user-interface applications.

With superb all-round viewing angles, this module ensures clear visibility from virtually any position. It operates reliably across a wide temperature range of -40°C to +70°C, making it suitable for demanding environments. The module supports I²C, parallel, and SPI interfaces, providing flexible connectivity options for your microcontroller or development board.

Key Specifications

• Display: 1.45” OLED, RGB on black
• Resolution: 160 x 128 pixels
• Controller: SSD1333
• Construction: Chip-on-glass (COG)
• Logic Voltage: 5V
• Interfaces: I²C, parallel, SPI
• Module Dimensions: 35.8 x 45.3 x 1.6mm
• Active Area: 28.78 x 23.024mm
• Dot Size: 0.04 x 0.164mm
• Operating Temperature: -40°C to +70°C

This display module is an excellent choice for designers seeking a compact, high-quality graphic display solution with excellent viewing characteristics and robust performance in temperature-sensitive applications.
