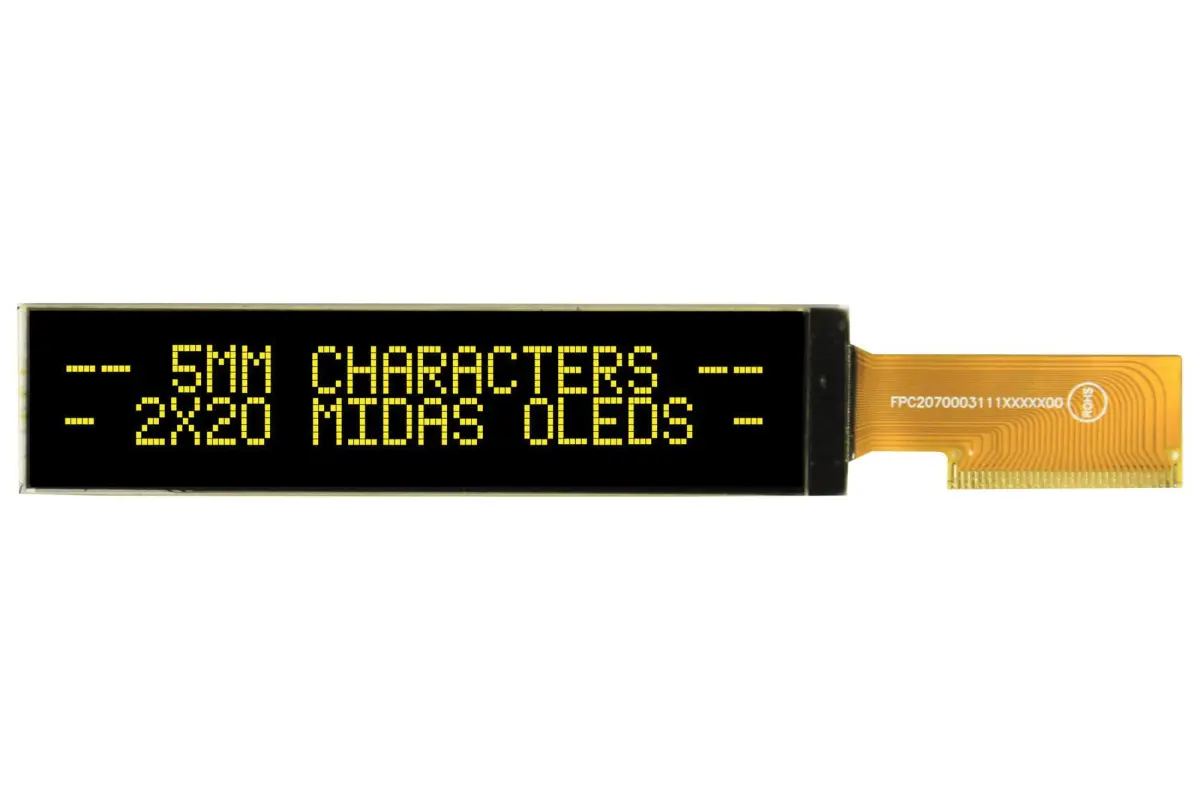

MIDAS OLED Display Module 20x2 Yellow on Black 5V

The MIDAS OLED Display Module offers a striking yellow on black appearance, ensuring excellent readability and a sharp visual contrast for your projects. Featuring a 20 x 2 character count, this display module is built to deliver clear text and graphics in a compact form factor. With a logic voltage of 5V, it supports versatile communication interfaces including Parallel, SPI, and I2C, providing flexible integration options for various electronic setups.

Designed with TAB construction, the module has a compact size of 84.5mm x 19.28mm x 2.05mm (without backlight), making it ideal for space-constrained applications. It boasts an active area of 73.52mm x 11.52mm and a character size of 3.22mm x 5.57mm. The display performs reliably across a broad operating temperature range from -40°C to 80°C, ensuring durability in demanding environments.

Key Features & Specifications

• Display Appearance: Yellow on Black
• Character Count: 20 x 2
• Logic Voltage: 5V
• Interface Type: I2C, Parallel, SPI
• Contrast Ratio: 2000:1
• Response Time: 10µs (T rise and T fall)
• Viewing Angle: 160° minimum
• Font Set: English, Japanese, Cyrillic, Euro
• Operating Lifetime: 50000 hours

Whether you are designing imaging equipment, video systems, or vision applications, this OLED module provides a robust and high-performance display solution with rapid response times and an extensive font set to suit your global design requirements.
