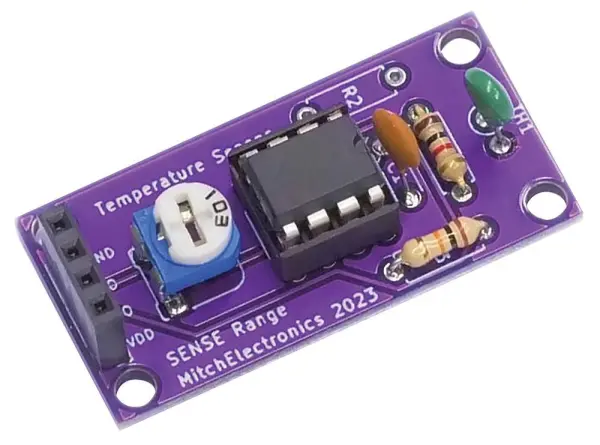

MITCHELECTRONICS Temp Sense Module Kit

The MITCHELECTRONICS Temp Sense Module Kit is part of the SENSE range of electronics kits, designed to utilise an NTC thermistor to detect ambient temperature. This module is perfect for incorporating into projects that need to react to changes in temperature, such as monitoring systems or coolers.

One of the key features of this module is the onboard potentiometer, which allows for adjustable sensitivity of the sensor. It provides both digital and analogue outputs to suit various project requirements. The digital output compares the thermistor voltage to the potentiometer output, creating a logical 1 or 0 when the specified temperature level is met. Meanwhile, the analogue output is connected to an amplifier set with a gain of one.

Supplied in kit form, this module is ideal for beginners or for use as soldering practice. Each module in the SENSE range shares the same dimensions, pin-out, and mounting holes, making them interchangeable depending on your specific requirements.

Key Specifications

• Operating Voltage: 3V - 12V
• PCB Dimensions: 20 x 40mm
• Overall Dimensions: 40 x 30 x 25mm (H x W x D)
• Weight: 7g
• Output Types: Digital and Analogue
