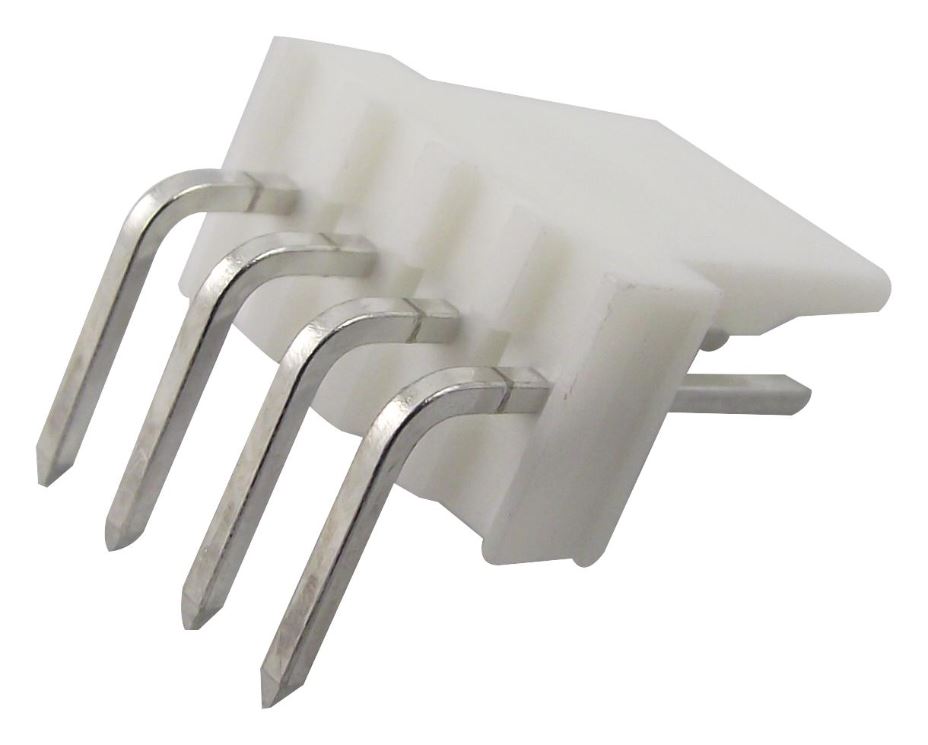

MOLEX 0.1 Square Pin Header, 4-Way, 2.54mm Pitch
MOLEX KK 254 4-way square pin header with 2.54mm pitch, ideal for automotive, medical & electronics applications.
The MOLEX 0.1 Square Pin Header, 4-Way, 2.54mm Pitch is an essential interconnect solution for board-to-board and wire-to-board applications. It belongs to the KK 254 Connector System, offering reliable power distribution with up to 5A and 250V per circuit.
Key Features
- Dual-cantilever terminals for secure and stable connections.
- Polarizing header backwalls and ribs ensure proper orientation during mating.
- Friction-lock headers and receptacles enhance connection integrity.
- High-temperature nylon housing with reflow matte-tin plating for durability under demanding conditions.
Applications
This connector is widely used in:
- Automotive systems.
- Consumer electronics.
- Communications & networking equipment.
- Medical devices.
Important Notice
Current market demand has extended lead times for this product. Delivery schedules may vary, and it is exempt from promotional discounts.
Technical Specifications
- Connector System: Signal, Wire-to-Board
- Pitch Spacing: 2.54mm
- Number of Rows: 1
- Number of Contacts: 4
- Contact Termination Type: Through Hole Right Angle
- Product Range: KK 254 7395
- Connector Shroud: Partially Shrouded
- Contact Material: Brass
- Contact Plating: Tin Plated
This MOLEX connector is engineered for reliable performance across various industries, ensuring secure and efficient electrical connections.
- Automotive systems
- Consumer electronics
- Communications & networking equipment
- Medical devices
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Connector System: Signal, Wire-to-Board
- Pitch Spacing: 2.54mm
- No. of Rows: 1
- No. of Contacts: 4
- Contact Termination Type: Through Hole Right Angle
- Product Range: KK 254 7395
- Connector Shroud: Partially Shrouded
- Contact Material: Brass
- Contact Plating: Tin Plated
- Voltage Rating: 250V per circuit
- Current Rating: 5A per circuit
- Weight: 50gm
