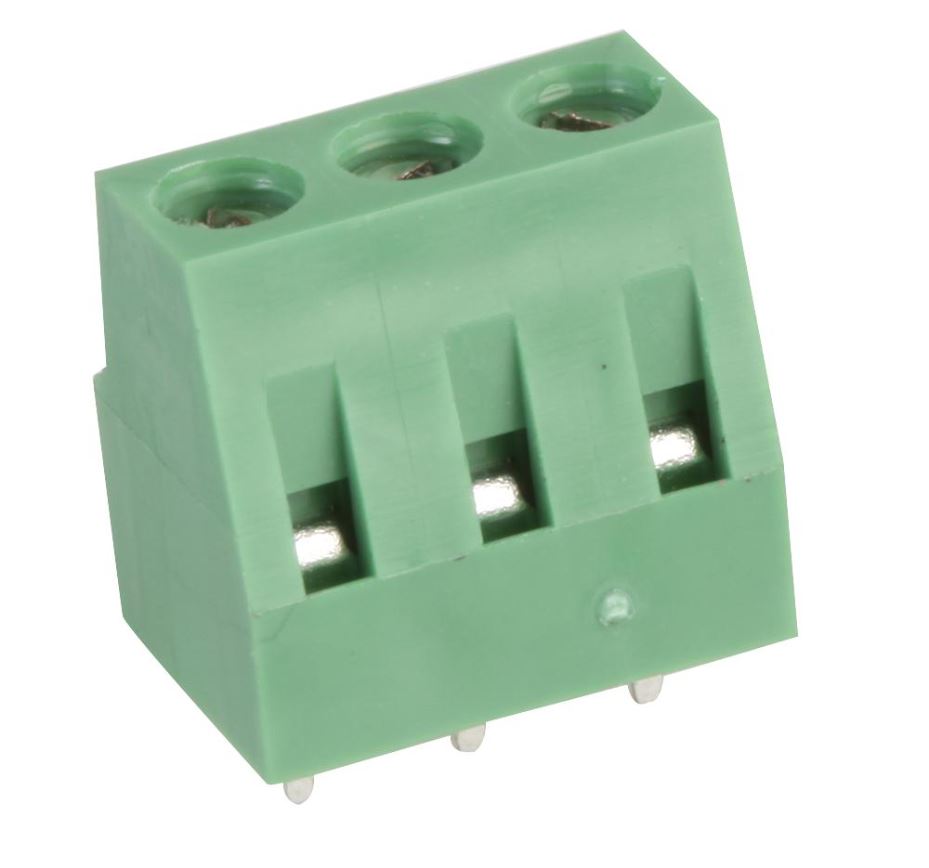

MULTICOMP PRO 5mm 3-Way PCB Terminal Block, Screw, 16A
MULTICOMP PRO 5mm PCB terminal block, screw connection, 16A, 300V, for industrial use. Tin-plated brass terminals.
The MULTICOMP PRO 5mm PCB Terminal Block is a high-quality electrical connector designed for secure and efficient wire-to-board connections. Featuring a tin-plated brass terminal and a green polyamide 66 insulating body, this terminal block ensures reliable performance in demanding industrial environments.
The terminal block utilises a nickel-plated steel cage clamp and screw for robust wire connection, supporting wire sizes from 26AWG to 12AWG. It is rated for a current of 16A and a voltage of 300V, making it suitable for a variety of industrial applications. The through-hole right-angle block orientation ensures a compact and tidy installation on PCBs.
Key Features
- High insulation resistance (>2000MR at 500VDC)
- Wide operating temperature range (-40°C to 105°C)
- Screw wire connection for secure fastening
- Compact 5mm pitch spacing for efficient PCB use
This terminal block is ideal for industrial applications where durability and secure electrical connections are essential. However, due to market demand, lead times may vary, and product discounts are not applicable.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Industrial applications
- PCB wiring
- Electrical circuit connections
- Material: Polyamide 66 insulating body
- Terminal Material: Tin-plated brass
- Clamp Material: Nickel-plated steel
- Wire Connection Method: Screw
- Pitch Spacing: 5mm
- Number of Positions: 3 Ways
- Wire Size (Min): 26AWG
- Wire Size (Max): 12AWG
- Rated Current: 16A
- Rated Voltage: 300V
- Block Orientation: Through Hole Right Angle
- Insulation Resistance: >2000MR at 500VDC
- Operating Temperature Range: -40°C to 105°C
- Weight: 900g
