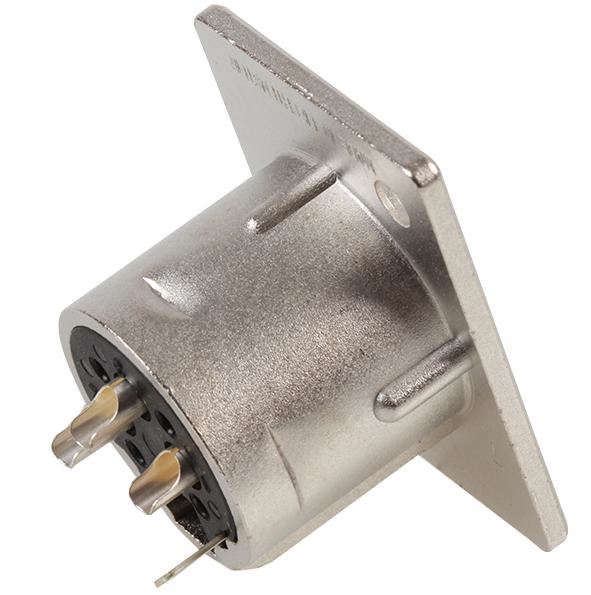

NEUTRIK 4-Pin Panel Socket, XLR Female, Solder Contact
Durable 4-pin XLR female panel socket from NEUTRIK, perfect for professional audio setups. Silver-plated contacts, compact design.
The NEUTRIK NC4FP-1 is a high-quality 4-pole XLR female panel socket designed for professional audio applications. With its compact design and durable construction, this socket ensures reliable performance in various environments.
Key Features:
- Compact Design: One of the smallest hard wiring receptacles available, featuring large solder cups for easy installation.
- Compatibility: Works seamlessly with Switchcraft DM, DF, and Cannon XLB231, XLB232 series connectors.
- Secure Connection: Equipped with a latch locking device for secure mating and a 'P' chassis shape for easy panel mounting.
- Durable Materials: Features a polyamide (PA 6.6 30% GR) insert, brass contacts with silver plating, and a zinc die-cast shell with nickel plating for long-lasting use.
- Reliable Performance: Rated for 10A current per contact, dielectric strength of 1.5KVDC, and a lifetime exceeding 1000 mating cycles.
- Versatile Use: Suitable for a wide temperature range from -30°C to +80°C and an IP40 protection class rating.
Ideal for professional audio setups, this panel socket is a must-have for ensuring secure and high-quality connections.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Professional audio equipment
- Studio setups
- Live sound systems
- Broadcast equipment
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- No. of Contacts: 4
- Gender: Socket
- Connector Mounting: Panel Mount
- Contact Plating: Silver Plated
- Material: Polyamide (PA 6.6 30% GR) insert, brass (CuZn39Pb3) contact
- Shell Material: Zinc die-cast (ZnAl4Cu1) with nickel plating
- Locking Element: Steel Ck67
- Flammability Rating: UL 94 HB, IEC 61076-2-103 compliant
- Dielectric Strength: 1.5KVDC
- Rated Current: 10A per contact
- Rated Voltage: < 50V
- Lifetime: > 1000 mating cycles
- Maximum Wire Size: 16AWG (1.5mm²)
- Protection Class: IP40
- Temperature Range: -30°C to +80°C
- Weight: 30g
