NEUTRIK 6.35mm Mono Jack Plug, Right Angle, Black
Professional 1/4-inch mono jack plug by NEUTRIK: right-angle, metal housing, high-density compatible. Ideal for audio & guitar cables.

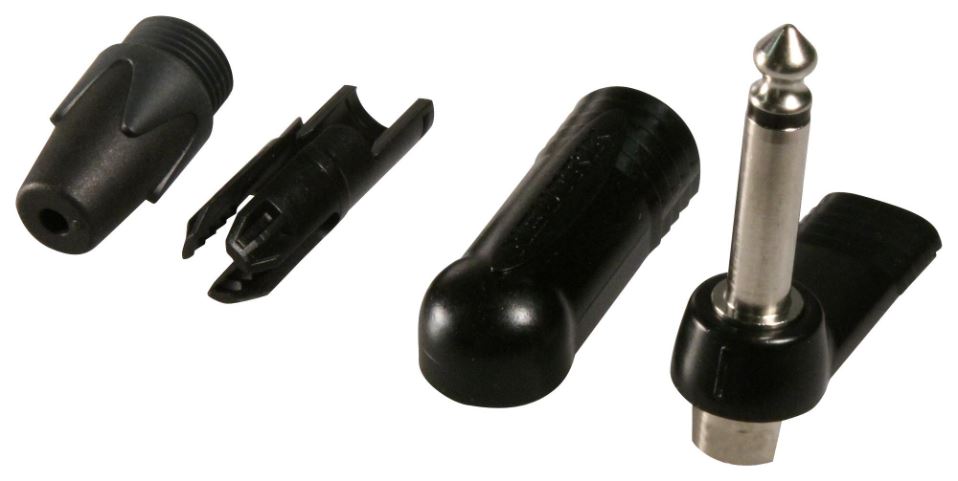

The NEUTRIK NP2RX-BAG is a professional-grade 6.35mm (1/4-inch) mono jack plug designed for reliable and high-density audio applications. Featuring a right-angle design, this heavy-duty plug delivers superior cable retention with its unique chuck-type strain relief, ensuring a secure connection even in demanding environments. Its slimline metal housing (14.5mm width) supports the highest-density jack fields, making it ideal for modern audio setups.
Constructed with precision-machined, one-piece tip contacts, this plug eliminates the risk of snagging or breakage during frequent use. The all-metal housing enhances durability and provides improved EMI (electromagnetic interference) protection compared to plastic-covered alternatives like the NP*RCS series.
Key Benefits:
- Robust die-cast shell – Stylish and long-lasting, with black chromium plating.
- Wide compatibility – Fits cables with outer diameters from 4mm to 7mm.
- High-performance materials – Nickel-plated brass solder contacts, polyacetal + PU bushing, and polyamide inserts.
- IEC 60603-11/EIA RS-453 compliant – Meets professional audio standards.
- Temperature-resistant – Stable performance from -20°C to 65°C.
- Reliable mating cycles – Rated for >1,000 insertions with minimal wear.
Ideal for: Audio cables, speakers, amplifiers, mixing desks, and guitar equipment where space efficiency, durability, and signal integrity are critical.
- **Audio cables and snakes**
- **Professional speakers and amplifiers**
- **Mixing desks & studio equipment**
- **Guitar/bass instrument connections**
- **Contact Plating:** Nickel-plated brass
- **Housing Material:** Zinc die-cast (black chromium plating)
- **Insert Material:** Polyamide + polyacetal/PU bushing
- **Wire Compatibility:** 18AWG (1mm²) or thicker
- **Cable Diameter Range:** 4mm–7mm
- **Voltage Rating:** <50V
- **Mating Cycles:** >1,000
- **Temperature Range:** -20°C to 65°C
- **Width:** 14.5mm (slimline design)
- **Pin Diameter:** 6.35mm
- **Gender:** Plug
- **Connector Mounting:** Cable-mount
- **Compliance:** IEC 60603-11 / EIA RS-453
