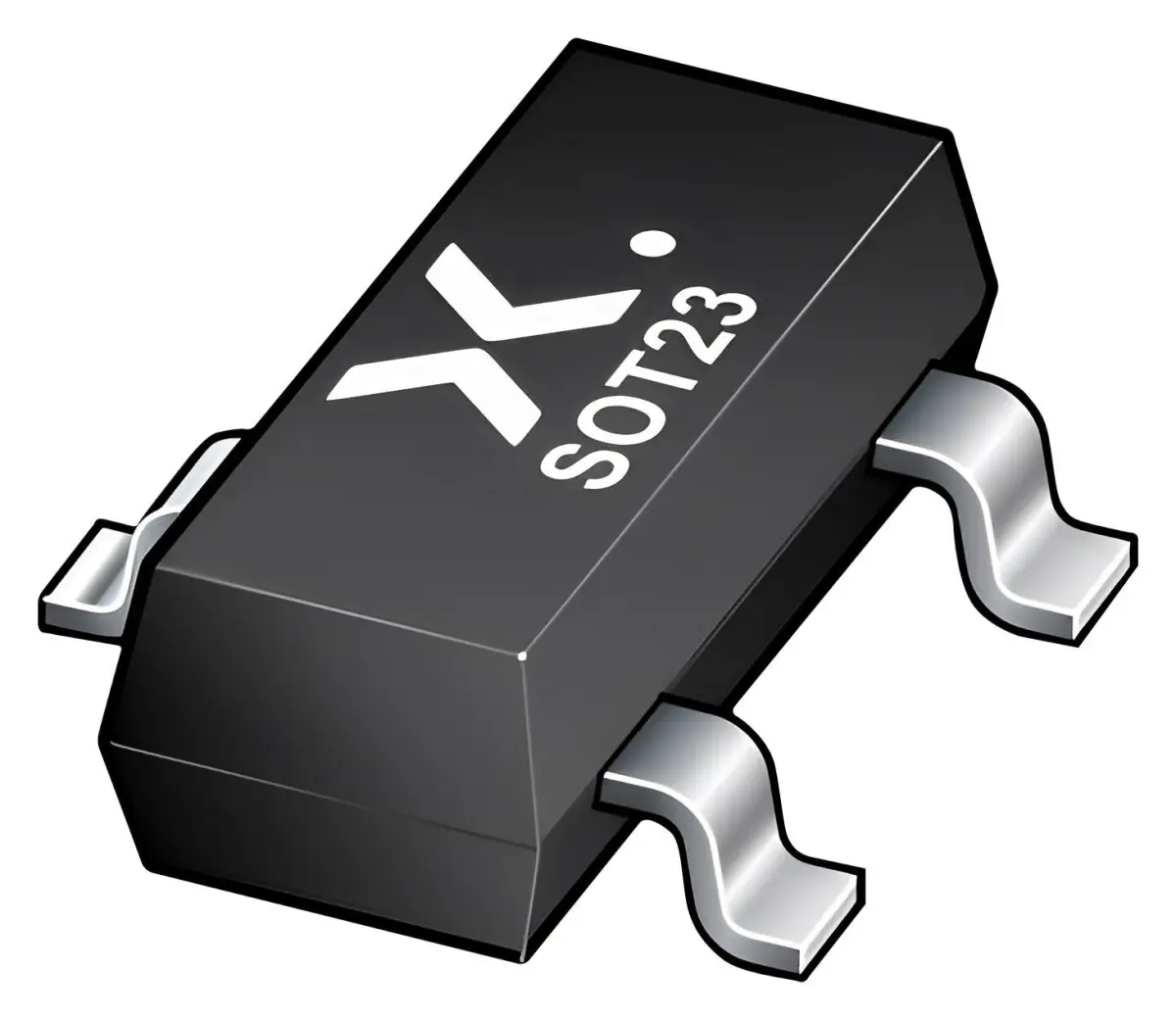

NEXPERIA BC850B NPN General Purpose Transistor, SOT-23 - 45V
- SKU
- C3-SC16043
- EAN
- 3562084122391
NEXPERIA BC850B NPN transistor in SOT-23 package. 45V, 100mA, 250mW, AEC-Q101 qualified for general-purpose switching & amplification.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- General-purpose switching circuits
- Low-power signal amplification
- Industrial control systems
- Power management modules
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Transistor Polarity: NPN
- Collector-Emitter Voltage (Vceo max): 45V
- Continuous Collector Current (Ic): 100mA
- Power Dissipation (Pt): 250mW
- Package / Case: SOT-23 (TO-236)
- Mounting Type: Surface Mount
- Number of Pins: 3
- Transition Frequency (ft): 100MHz
- DC Current Gain (hFE): 290 (typical)
- DC Current Gain (hFE) Min: 200
- Maximum Operating Temperature: 150°C
- Qualification Standard: AEC-Q101
- Product Range: General Purpose
- Marking Code: 2F
- Complementary PNP Types: BC859, BC860
- Polarity: NPN
- Collector Emitter Voltage Max: 45V
- Continuous Collector Current: 100mA
- DC Collector Current: 100mA
- Power Dissipation: 250mW
- Transistor Case Style: SOT-23
- Transistor Mounting: Surface Mount
- of Pins: 3Pins
- Transition Frequency: 100MHz
- Operating Temperature Max: 150°C
- Qualification: AEC-Q101
- SVHC: No SVHC (25-Jun-2025)
