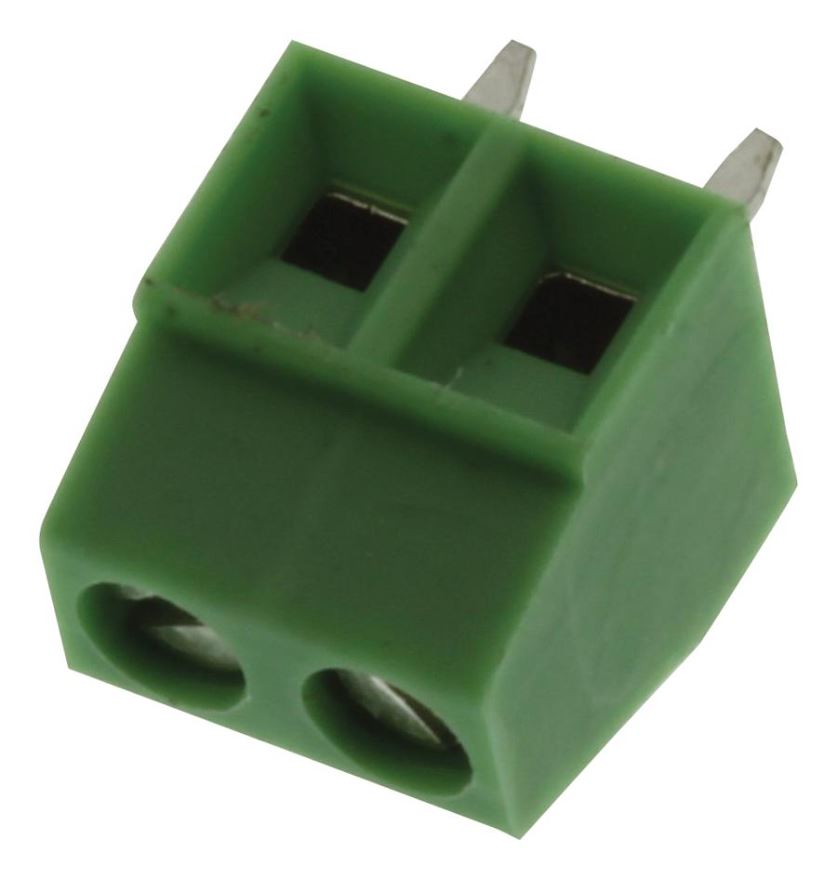

PHOENIX CONTACT MKDS 1/2-3.81 PCB Terminal Block - 2 Way, 3.81mm
Compact PA-insulated 2-way terminal block with screw connection & UL94V-0 rating for industrial applications.
The PHOENIX CONTACT MKDS 1/2-3.81 PCB Terminal Block is a compact and reliable wire-to-board connector designed for industrial applications. Its PA insulation ensures safety and durability, while the screw connection with tension sleeve and wave soldering provides secure and efficient electrical connections. The green-coloured terminal block is compliant with UL94V-0 flammability standards, ensuring high resistance to fire.
Ideal for space-constrained environments, this 2-way terminal block features a well-known connection principle, making it suitable for global use. It offers low temperature rise and maximum contact force, enhancing performance and reliability in various industrial settings.
Applications
- Industrial electronics
- Control panels
- Power distribution systems
Key Features
- Compact design for efficient space utilisation
- High flammability rating (UL94V-0)
- Secure screw connection with tension sleeve
- Wave soldering compatible for durable mounting
With its dependable performance and robust construction, this terminal block is an excellent choice for applications requiring stability and safety.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
Technical Specifications
- Industrial electronics
- Control panels
- Power distribution systems
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Pitch Spacing: 3.81mm
- No. of Positions: 2 Ways
- Wire Size (Min): 26 AWG
- Wire Size (Max): 16 AWG
- Conductor Area CSA: 1.5mm²
- Wire Connection Method: Screw
- Rated Current: 10A
- Rated Voltage: 300V
- Block Orientation: Through Hole Right Angle
- Product Range: MKDS
- Weight: 900g
